客户端要安装 anyconnect

1、配置证书颁发机构、申请证书：

ip domain name wsc2026.org
crypto key generate rsa label ROOTCA modulus 2048
ip http server
crypto pki server ROOTCA
 grant auto
 hash sha256
 eku server-auth client-auth

crypto key generate rsa label KEY modulus 2048 exportable
crypto pki trustpoint IKE
 enrollment url http://192.168.1.2:80
 fqdn none
 subject-name cn=100.1.1.254
 ip-address 100.1.1.254
 revocation-check none
 rsakeypair KEY
 eku request server-auth client-auth

# 将证书导出为 .pfx 并拷给客户端
crypto pki export IKE pkcs12 terminal password 1

2、配置 RAVPN：

username admin algorithm-type scrypt secret Skills39
aaa new-model
aaa authorization network RAVPN local

ip local pool IP 10.0.0.1 10.0.0.10

access-list 10 permit 192.168.1.0 0.0.0.255    //匹配内网地址

no crypto ikev2 http-url cert

crypto ikev2 authorization policy RAVPN-IKEV2
 pool IP
 netmask 255.255.255.0
 route set access-list 10

crypto ikev2 proposal PROPOSAL
 encryption aes-cbc-256
 integrity sha256
 group 14
 prf sha256

crypto ikev2 policy 1
 proposal PROPOSAL

crypto ikev2 profile PROFILE
 match identity remote any
 identity local dn
 authentication remote rsa-sig
 authentication local rsa-sig
 pki trustpoint IKE
 aaa authorization group cert list RAVPN RAVPN-IKEV2
 virtual-template 1

crypto ipsec transform-set IPSEC esp-aes esp-sha256-hmac
 mode tunnel

crypto ipsec profile PRO
 set transform-set IPSEC
 set ikev2-profile PROFILE
 set pfs group14

int lo 99
 no sh
 ip address 10.0.0.11 255.255.255.0    //IP与VPN地址池网段一样

int virtual-tempalte 1 type tunnel
 ip unnumbered Loopback 99
 tunnel mode ipsec ipv4
 tunnel protection ipsec profile PRO

ip http server
ip http secure-server
ip http secure-trustpoint IKE

·允许客户端下载附件：

·将附件上传给IOS：

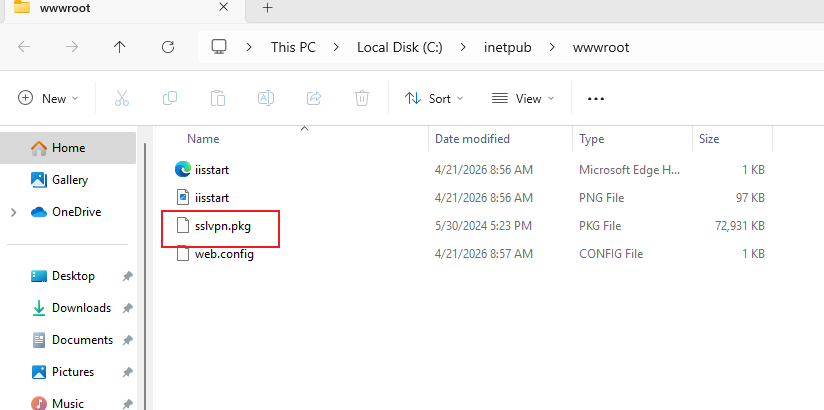

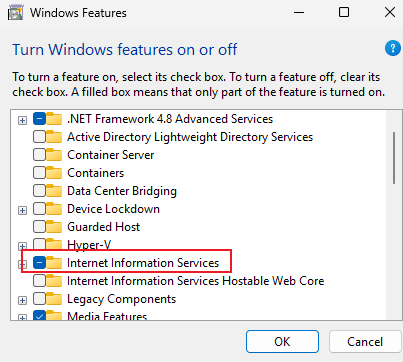

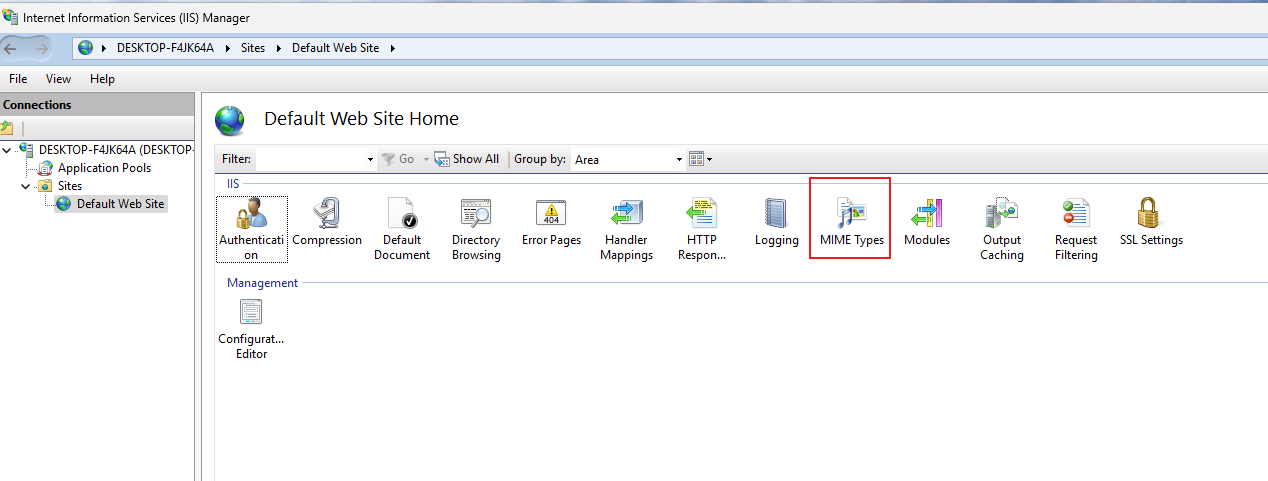

客户端先配置 IIS：

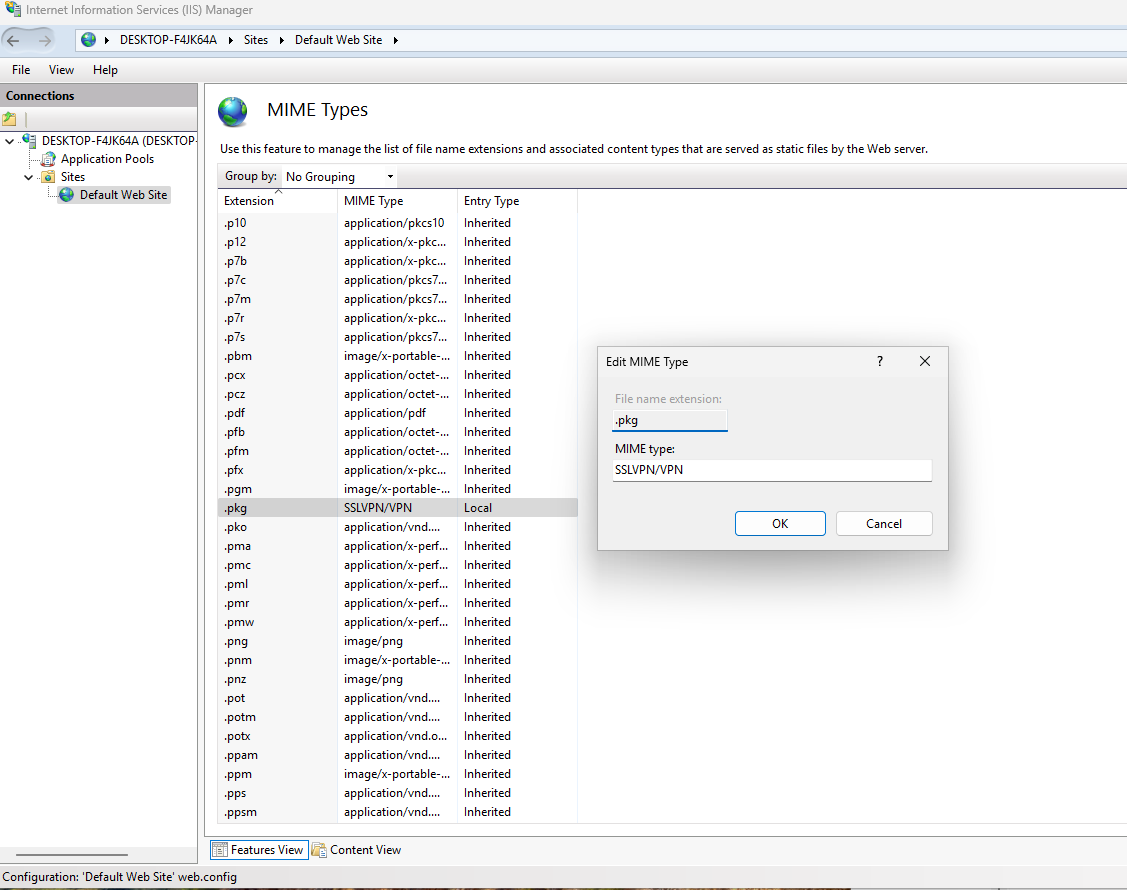

添加 .pkg 的文件扩展名

copy http: flash:

·配置：

crypto vpn anyconnect flash0:/webvpn/sslvpn.pkg sequence 1

aaa new-model
aaa authentication login RAVPN local
aaa authorization network RAVPN local    //这条前面RAVPN有配置过

webvpn gateway GW1
 ip address 100.1.1.254 port 443
 ssl trustpoint IKE
 inservice

webvpn context CTX1
 title "SSLVPN Portal"
 aaa authentication list RAVPN
 gateway GW1
 max-users 10
 user-profile location flash:/
 inservice
 policy group POLICY1
   functions svc-enabled

ip http server
ip http authentication local
ip http secure-server
ip http secure-trustpoint IKE

访问有点问题，因为Cisco支持的TLS协议版本太低，只有Windows10 才能够访问，Windows11不支持这么低版本的TLS协议

4、使用 profile-editor 生成 .xml 文件：

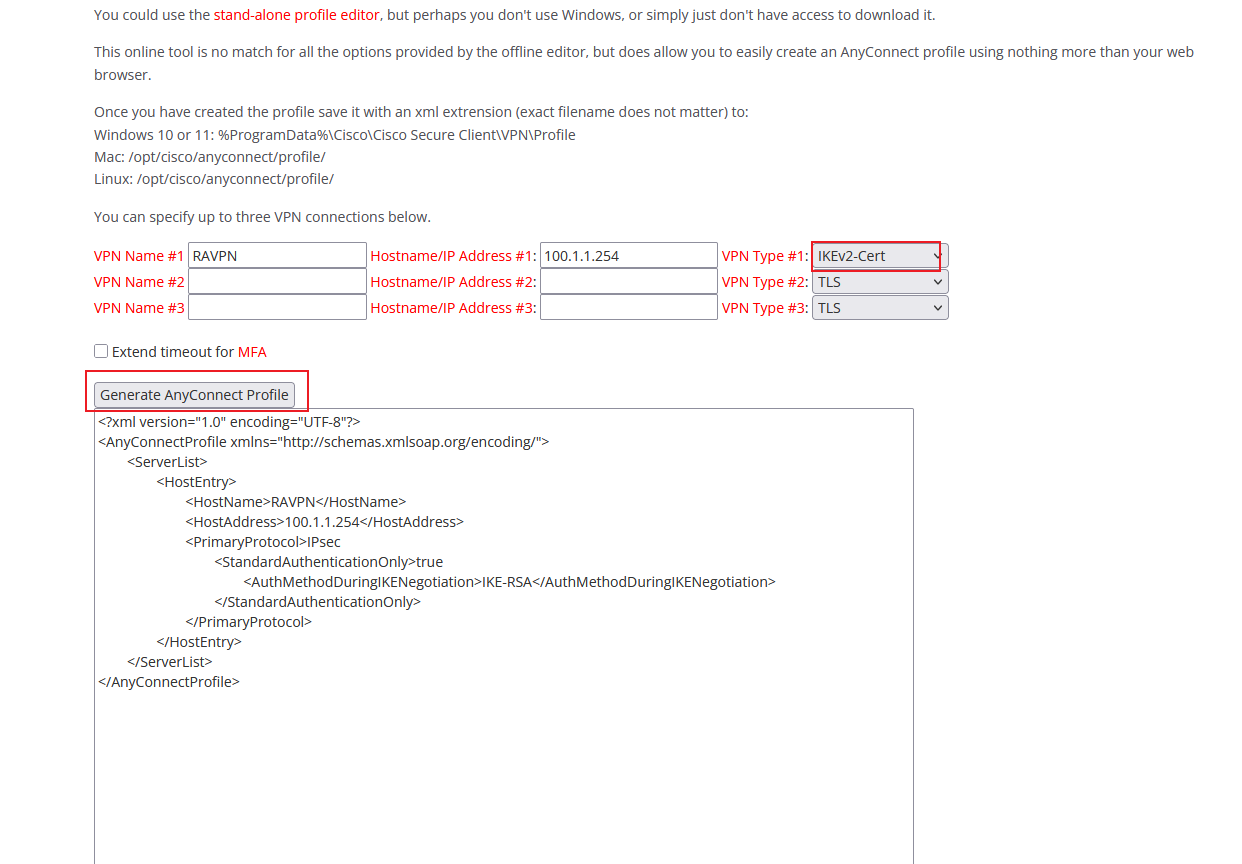

# 这里没有找到软件，用的是网站生成的：
https://www.ifm.net.nz/cookbooks/online-anyconnect-profile-editor.html

VPN Name可以自定义

将内容拷到 anyconnect profile中：

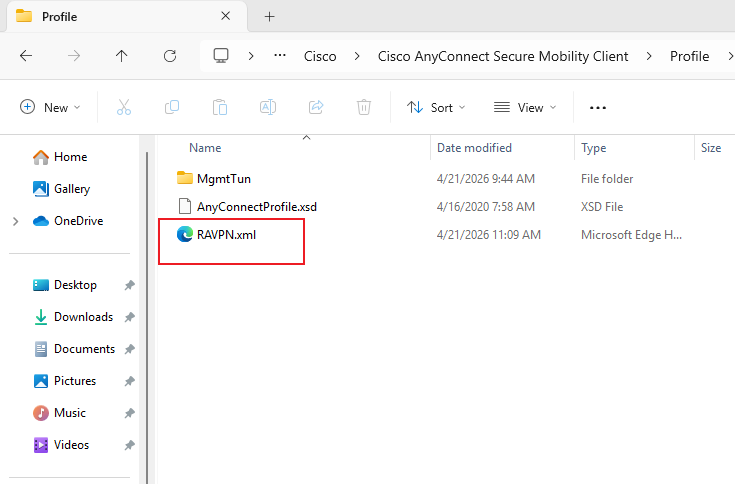

路径：C:\ProgramData\Cisco\Cisco AnyConnect Secure Mobility Client\Profile

ProgramData是隐藏文件夹

创建一个 .xml的文件，然后将这里生成的内容复制进去：

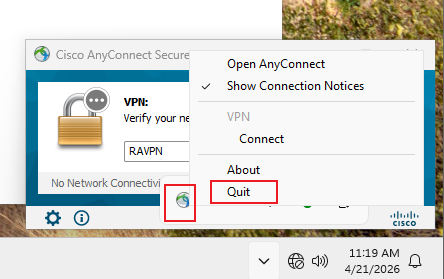

有时客户端读取不到配置文件，需要手动退出，然后重新打开：

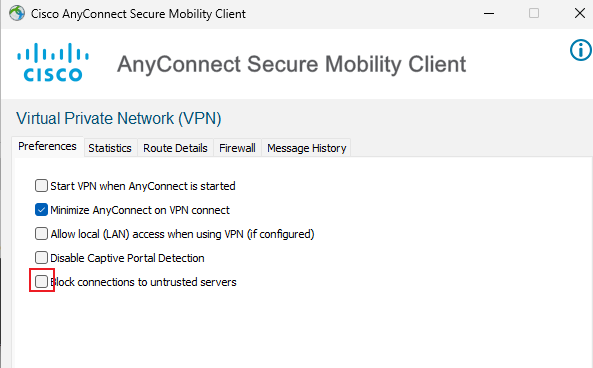

·客户端连接：

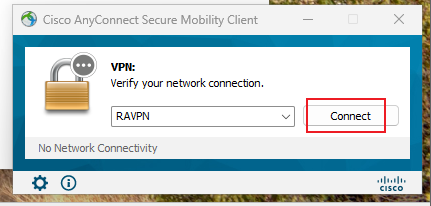

点击连接：

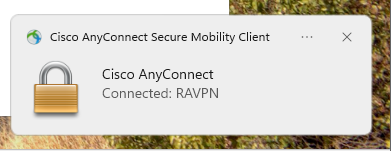

连接成功

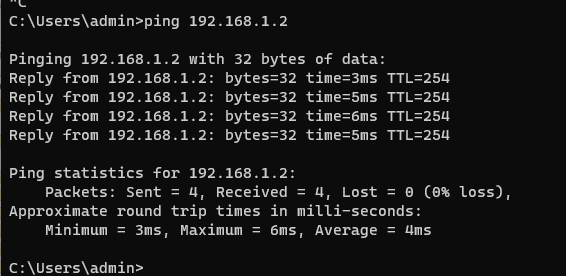

ping 测试：
