一、EEM：

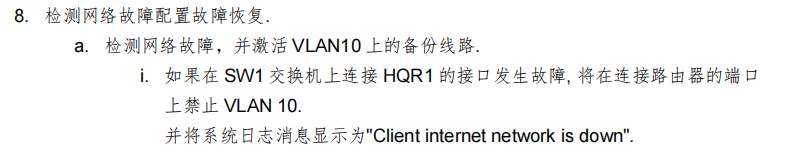

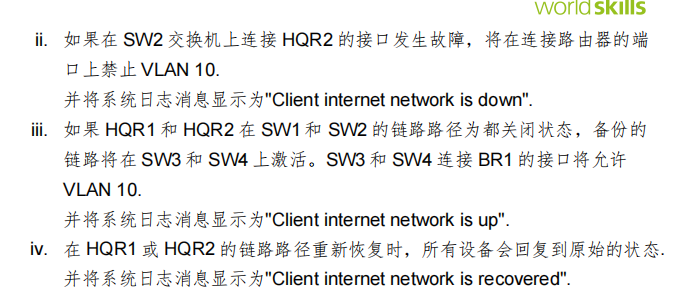

1、Sw1、Sw2上禁用vlan 10：

# Sw1、Sw2（相同配置）:
int g1/1
 no sw tr al vl
 sw tr al vl remove 20
 exit

track 10 interface gigabitEthernet 1/1 line-protocol
event manager applet DOWN

 event syslog pattern "10 interface Gi1/1 line-protocol Up -> Down"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 4 cli command "interface gigabitEthernet 1/1"

 action 5 cli command "sw tr al vl remove 10,20"

 action 7 cli command "end"

 action 8 syslog msg "Client internet network is down"

event manager applet RECOVERED

 event syslog pattern "10 interface Gi1/1 line-protocol Down -> Up"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 4 cli command "interface gigabitEthernet 1/1"

 action 5 cli command "switchport trunk allowed vlan 1-19,21-4094"

 action 7 cli command "end"

 action 8 syslog msg "Client internet network is recovered"

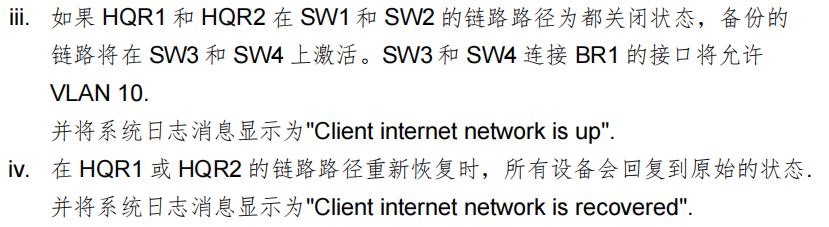

2、当HQ1和HQ2 down时，Sw3、Sw4 上放行 vlan10备份链路：

# 可以使用 track 10 list boolean .. 来调用多个 sla
track 10 list boolean and    //当任意一个接口关闭时就会DOWN，只有当所有接口都启动时才会UP
track 10 list boolean or    //只有当所有接口关闭时才会DOWN，但是任意一个接口启动时都会UP
## 这里使用 track 10 list boolean or

这里选择ping vlan 30 是因为vlan10和vlan20可能会因为vlan的禁用而导致无法ping通以至于EEM出问题

# Sw3、Sw4（相同配置）：

## 配置 sla 和 track：
ip sla 1
 icmp-echo 192.168.30.252 source-interface vlan 30
  frequency 5
ip sla 2
 icmp-echo 192.168.30.253 source-interface vlan 30
  frequency 5
  exit
ip sla schedule 1 life forever start-time now
ip sla schedule 2 life forever start-time now

track 1 ip sla 1 reachability
 exit
track 2 ip sla 2 reachability
 exit

track 10 list boolean or
 object 1    //调用track 1
 object 2    //调用track 2
 exit

## 配置 EEM：
event manager applet CLIENT_UP

 event syslog pattern "10 list boolean or Up -> Down"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 4 cli command "interface gigabitEthernet 0/1"

 action 5 cli command "sw tr al vl all"

 action 7 cli command "end"

 action 8 syslog msg "Client internet network is up"

event manager applet RECOVERED

 event syslog pattern "10 list boolean or Down -> Up"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 4 cli command "interface gigabitEthernet 0/1"

 action 5 cli command "switchport trunk allowed vlan 1-9,11-4094"

 action 7 cli command "end"

 action 8 syslog msg "Client internet network is recovered"

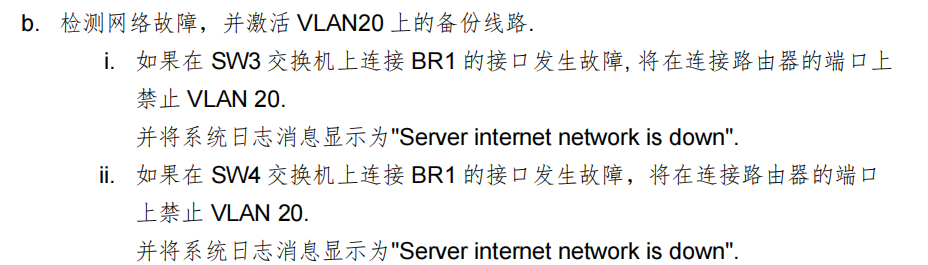

3、Sw3、Sw4上禁用vlan 20：

# Sw3、Sw4：
track 10 interface GigabitEthernet0/1 line-protocol

event manager applet VLAN10_UP

 event syslog pattern "3 list boolean or Up -> Down"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 3 cli command "int g0/1"

 action 4 cli command "sw tr al vl 1-4094"

 action 5 cli command "end"

 action 6 syslog msg "Client internet network is up"

event manager applet VLAN10_RE

 event syslog pattern "3 list boolean or Down -> Up"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 3 cli command "int g0/1"

 action 4 cli command "sw tr al vl 1-9,11-4094"

 action 5 cli command "end"

 action 6 syslog msg "Client internet network is recovered"

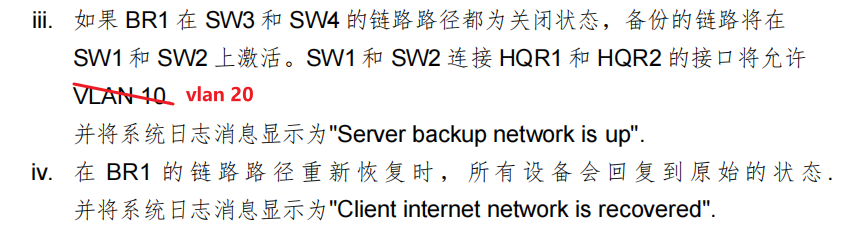

4、当BR1 down时 Sw1、Sw2 上放行vlan20：

思路：Sw3、Sw4上各自配置一个loop 0接口，Sw1、Sw2上配置静态路由来跟它通信。

Sw3、Sw4上检测 BR1的链路，当BR1链路down时，就将本地的 Loop0接口down掉，Sw1和Sw2使用sla icmp-echo 检测 Sw3和Sw4上的Loop 0接口，当它Down时，Sw1和Sw2就放行 Vlan 20

## Sw3：
int loop 0
 ip add 1.1.1.1 255.255.255.255

## Sw4：
int loop 0
 ip add 2.2.2.2 255.255.255.255

# Sw3、Sw4：
track 10 interface GigabitEthernet0/1 line-protocol

event manager applet LOOP_DOWN

 event syslog pattern "10 interface Gi0/1 line-protocol Up -> Down"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 3 cli command "int loop 0"

 action 4 cli command "shutdown"

 action 5 cli command "end"

event manager applet LOOP_RE

 event syslog pattern "10 interface Gi0/1 line-protocol Down -> Up"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 3 cli command "int loop 0"

 action 4 cli command "no shutdown"

 action 5 cli command "end"

# Sw1、Sw2：
ip route 1.1.1.1 255.255.255.255 192.168.30.3
ip route 2.2.2.2 255.255.255.255 192.168.30.4

ip sla 1

 icmp-echo 1.1.1.1

 frequency 5

ip sla schedule 1 life forever start-time now

ip sla 2

 icmp-echo 2.2.2.2

 frequency 5

ip sla schedule 2 life forever start-time now

track 1 ip sla 1 reachability

track 2 ip sla 2 reachability

track 3 list boolean or

 object 1

 object 2

event manager applet VLAN20_UP

 event syslog pattern "3 list boolean or Up -> Down"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 3 cli command "int g1/1"

 action 4 cli command "sw tr al vl 1-4094"

 action 5 cli command "end"

 action 6 syslog msg "Server backup network is up"

event manager applet VLAN20_RE

 event syslog pattern "3 list boolean or Down -> Up"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 3 cli command "int g1/1"

 action 4 cli command "sw tr al vl 1-19,21-4094"

 action 5 cli command "end"

 action 6 syslog msg "Client internet network is recovered"

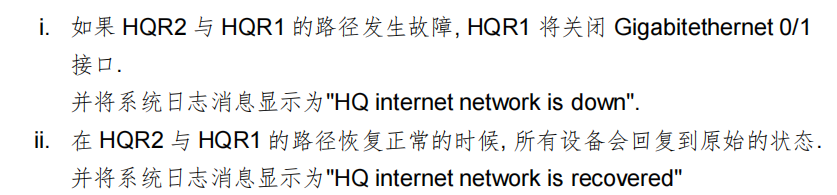

5、如果HQ1和HQ2之间的链路故障，HQ1将关闭G0/1接口：

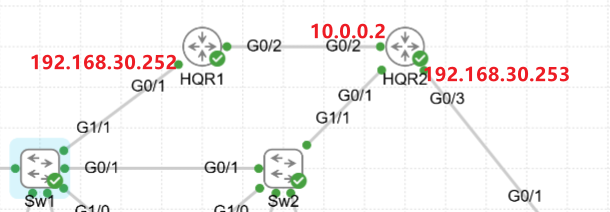

当G0/1接口shutdown时，sla、track就无法检测它和对端的状态了，所以需要使用sla去检测对端接口IP的状态（需要配置一个静态路由指向HQ2）

配置一个静态路由，去往10.0.0.0/30的路由下一跳为192.168.30.253

当g0/1接口没有shutdown时，g0/1的直连路由优先于10.0.0.0/30静态路由，静态路由就不会生效

当g0/1接口shutdown时，这条直连路由会消失，10.0.0.0/30的静态路由就会生效

（这里配置EEM接口down时配置静态路由，接口UP时删除静态路由）

# HQR1：
ip sla 1

 icmp-echo 10.0.0.2

 frequency 5

ip sla schedule 1 life forever start-time now

event manager applet HQ_DOWN

 event syslog pattern "1 ip sla 1 reachability Up -> Down"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 3 cli command "int g0/2"

 action 4 cli command "shutdown"

 action 5 cli command "exit"

 action 6 cli command "ip route 10.0.0.0 255.255.255.252 192.168.30.253"

 action 7 cli command "end"

 action 8 syslog msg "HQ internet network is down"

event manager applet HQ_RE

 event syslog pattern "1 ip sla 1 reachability Down -> Up"

 action 1 cli command "enable"

 action 2 cli command "conf t"

 action 3 cli command "int g0/2"

 action 4 cli command "no shutdown"

 action 5 cli command "exit"

 action 6 wait 3

 action 7 cli command "no ip route 10.0.0.0 255.255.255.252 192.168.30.253"

 action 8 cli command "end"

 action 9 syslog msg "HQ internet network is recovered"

在配置recovered时，需要先等待接口UP了，再删除静态路由，否则可能会导致接口还没有up，但是没有路由去往对端，ip sla icmp 检测失败，导致EEM再次DOWN，然后一直循环UP、DOWN
