always on VPN（未成功）.note

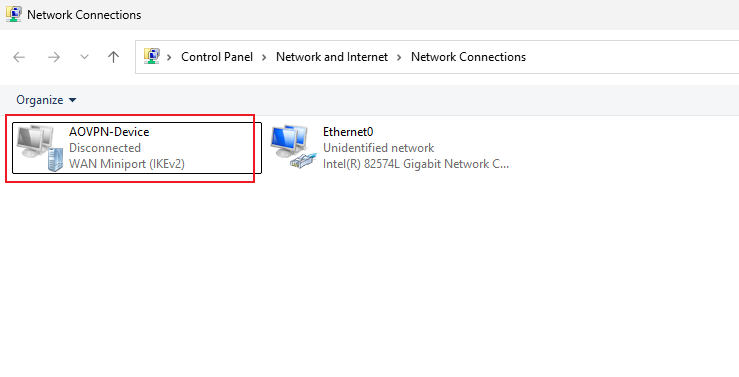

还没成功，接口和策略都能创建出来，手动连接都能连上，但是就是不会自动连接

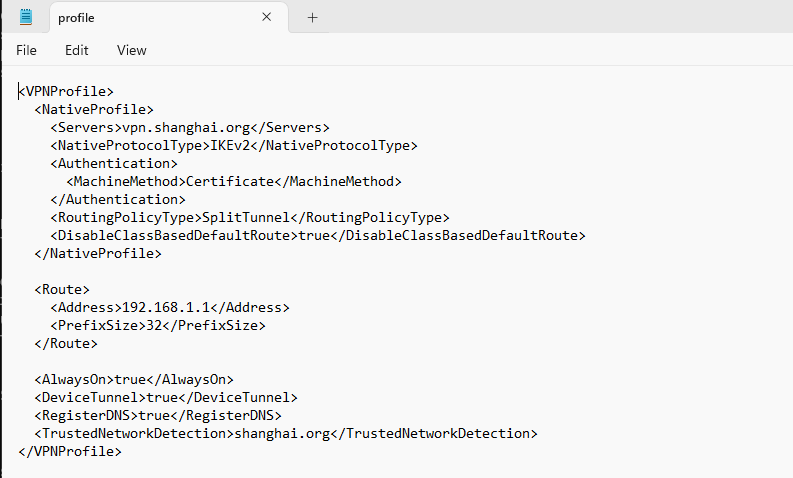

c:\profile.xml

<VPNProfile>
  <NativeProfile>
    <Servers>vpn.shanghai.org</Servers>
    <NativeProtocolType>IKEv2</NativeProtocolType>
    <Authentication>
      <MachineMethod>Certificate</MachineMethod>
    </Authentication>
    <RoutingPolicyType>SplitTunnel</RoutingPolicyType>
    <DisableClassBasedDefaultRoute>true</DisableClassBasedDefaultRoute>
  </NativeProfile>

  <Route>
    <Address>192.168.1.1</Address>
    <PrefixSize>32</PrefixSize>
  </Route>

  <AlwaysOn>true</AlwaysOn>
  <DeviceTunnel>true</DeviceTunnel>
  <RegisterDNS>true</RegisterDNS>
  <TrustedNetworkDetection>shanghai.org</TrustedNetworkDetection>
</VPNProfile>

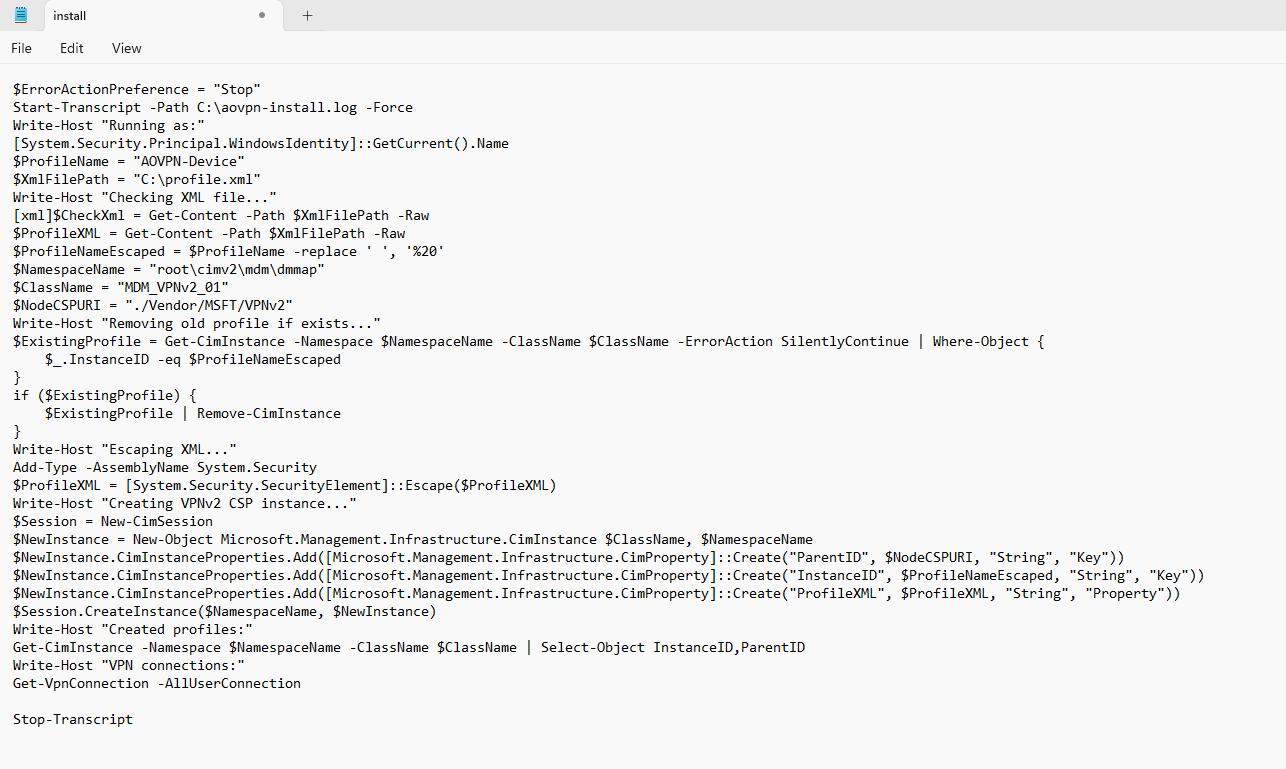

c:\install.ps1

$ErrorActionPreference = "Stop"

Start-Transcript -Path C:\aovpn-install.log -Force

Write-Host "Running as:"
[System.Security.Principal.WindowsIdentity]::GetCurrent().Name

$ProfileName = "AOVPN-Device"
$XmlFilePath = "C:\profile.xml"

Write-Host "Checking XML file..."
[xml]$CheckXml = Get-Content -Path $XmlFilePath -Raw

$ProfileXML = Get-Content -Path $XmlFilePath -Raw
$ProfileNameEscaped = $ProfileName -replace ' ', '%20'

$NamespaceName = "root\cimv2\mdm\dmmap"
$ClassName = "MDM_VPNv2_01"
$NodeCSPURI = "./Vendor/MSFT/VPNv2"

Write-Host "Removing old profile if exists..."
$ExistingProfile = Get-CimInstance -Namespace $NamespaceName -ClassName $ClassName -ErrorAction SilentlyContinue | Where-Object {
    $_.InstanceID -eq $ProfileNameEscaped
}

if ($ExistingProfile) {
    $ExistingProfile | Remove-CimInstance
}

Write-Host "Escaping XML..."
Add-Type -AssemblyName System.Security
$ProfileXML = [System.Security.SecurityElement]::Escape($ProfileXML)

Write-Host "Creating VPNv2 CSP instance..."
$Session = New-CimSession

$NewInstance = New-Object Microsoft.Management.Infrastructure.CimInstance $ClassName, $NamespaceName
$NewInstance.CimInstanceProperties.Add([Microsoft.Management.Infrastructure.CimProperty]::Create("ParentID", $NodeCSPURI, "String", "Key"))
$NewInstance.CimInstanceProperties.Add([Microsoft.Management.Infrastructure.CimProperty]::Create("InstanceID", $ProfileNameEscaped, "String", "Key"))
$NewInstance.CimInstanceProperties.Add([Microsoft.Management.Infrastructure.CimProperty]::Create("ProfileXML", $ProfileXML, "String", "Property"))

$Session.CreateInstance($NamespaceName, $NewInstance)

Write-Host "Created profiles:"
Get-CimInstance -Namespace $NamespaceName -ClassName $ClassName | Select-Object InstanceID,ParentID

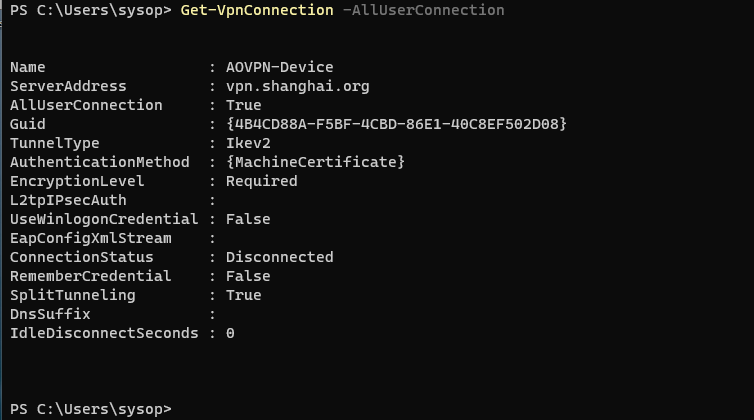

Write-Host "VPN connections:"
Get-VpnConnection -AllUserConnection

Stop-Transcript

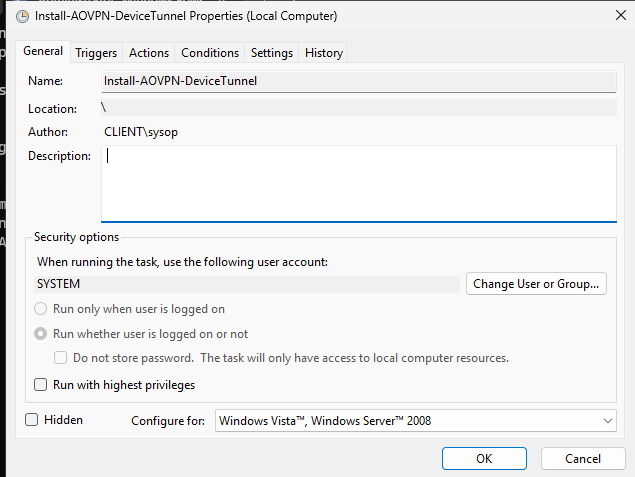

# Action:
powershell.exe -NoProfile -ExecutionPolicy Bypass -File C:\install.ps1
