1、Linux：

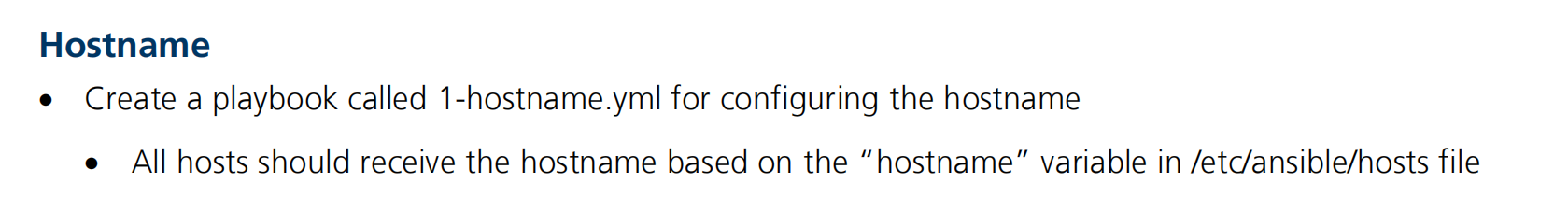

1）hostname：

---
- name: hostanem
  hosts: linux
  gather_facts: false
  tasks:
    - name: Basic Configure
      raw: apt install -y dbus
      changed_when: "'available' in dbus.stdout"
      register: dbus

    - name: Basic Configure
      systemd:
        state: started
        name: dbus
      changed_when: dbus.changed

    - name: Set Hostname
      hostname:
        name: "{{ hostname }}"
      when: hostname is defined
      notify: Set FQDN1

    - name: Set Hostname
      hostname:
        name: "{{ inventory_hostname }}"
      when: hostname is not defined
      notify: Set FQDN2

  handlers:
    - name: Set FQDN1
      lineinfile:
        path: /etc/hosts
        search_string: "127.0.1.1"
        line: "127.0.1.1 {{ hostname }}.applix.com {{ hostname }}"

    - name: Set FQDN2
      lineinfile:
        path: /etc/hosts
        search_string: "127.0.1.1"
        line: "127.0.1.1 {{ inventory_hostname }}.applix.com {{ inventory_hostname }}"

·剧本解释：

# 定义两个设置主机名的任务，因为这里主机名是根据剧本中的变量定义的，这里要假设变量不存在，假设变量不存在时，就使用inventory名称为主机名

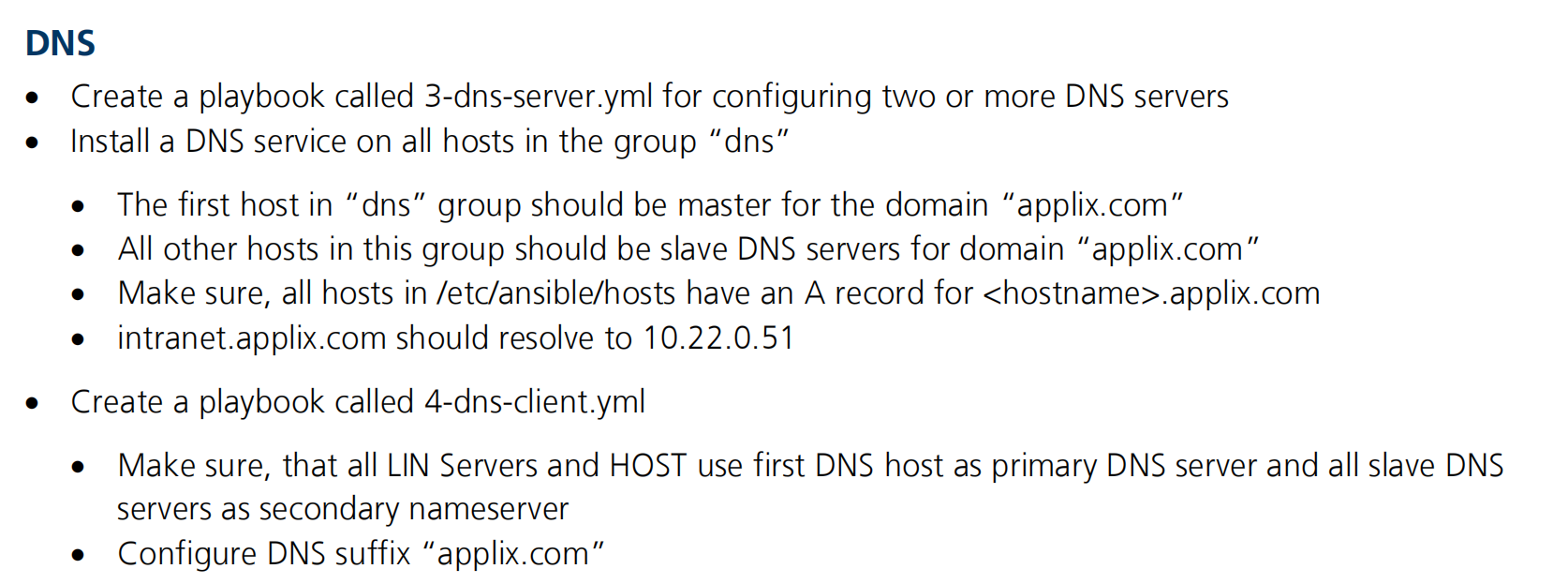

3）DNS（UDP 53、TCP 53）：

3-dns-server.yml

---
- name: DNS Server
  hosts: dns
  gather_facts: false
  vars:
    server: "{{ groups['dns'][0] }}"
    slave: "{{ groups['dns'][1:] }}"
    server_ip: "{{ hostvars[server].ansible_host }}"
  tasks:
    - name: Instal DNS Server
      apt:
        name:
          - bind9
          - dnsutils
        update_cache: false

    - name: Configure Master DNS Server
      lineinfile:
        path: /data/named.slave
        search_string: masters
        line: "masters { {{ server_ip }}; };"
      delegate_to: localhost

    - name: Configure DNS Server
      copy:
        src: "{{ item }}"
        dest: /etc/bind/
      when: inventory_hostname in server
      loop:
        - /data/named.conf
        - /data/db.applix.com
      register: dns

    - name: Configure DNS Slave Server
      copy:
        src: /data/named.slave
        dest: /etc/bind/
      when: inventory_hostname in slave
      register: dns

    - name: Configure DNS Slave Server
      copy:
        src: /data/db.applix.com
        dest: /var/cache/bind
      when: inventory_hostname in slave
      register: dns

    - name: restart dns server
      systemd:
        state: restarted
        name: bind9
      when: dns.changed

    - name: Set DNS Server
      raw: "echo nameserver {{ server_ip }} > /etc/resolv.conf"
      changed_when: false

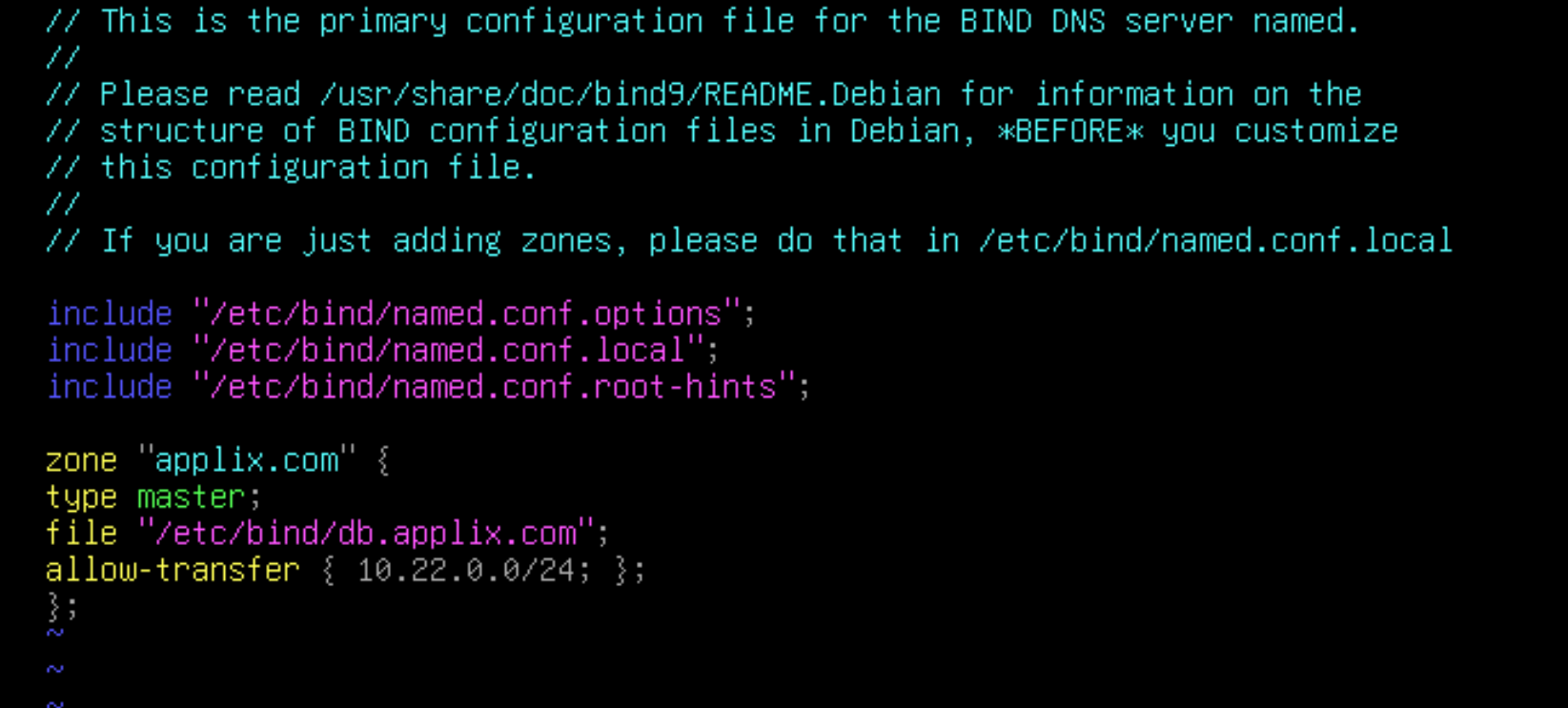

named.conf:

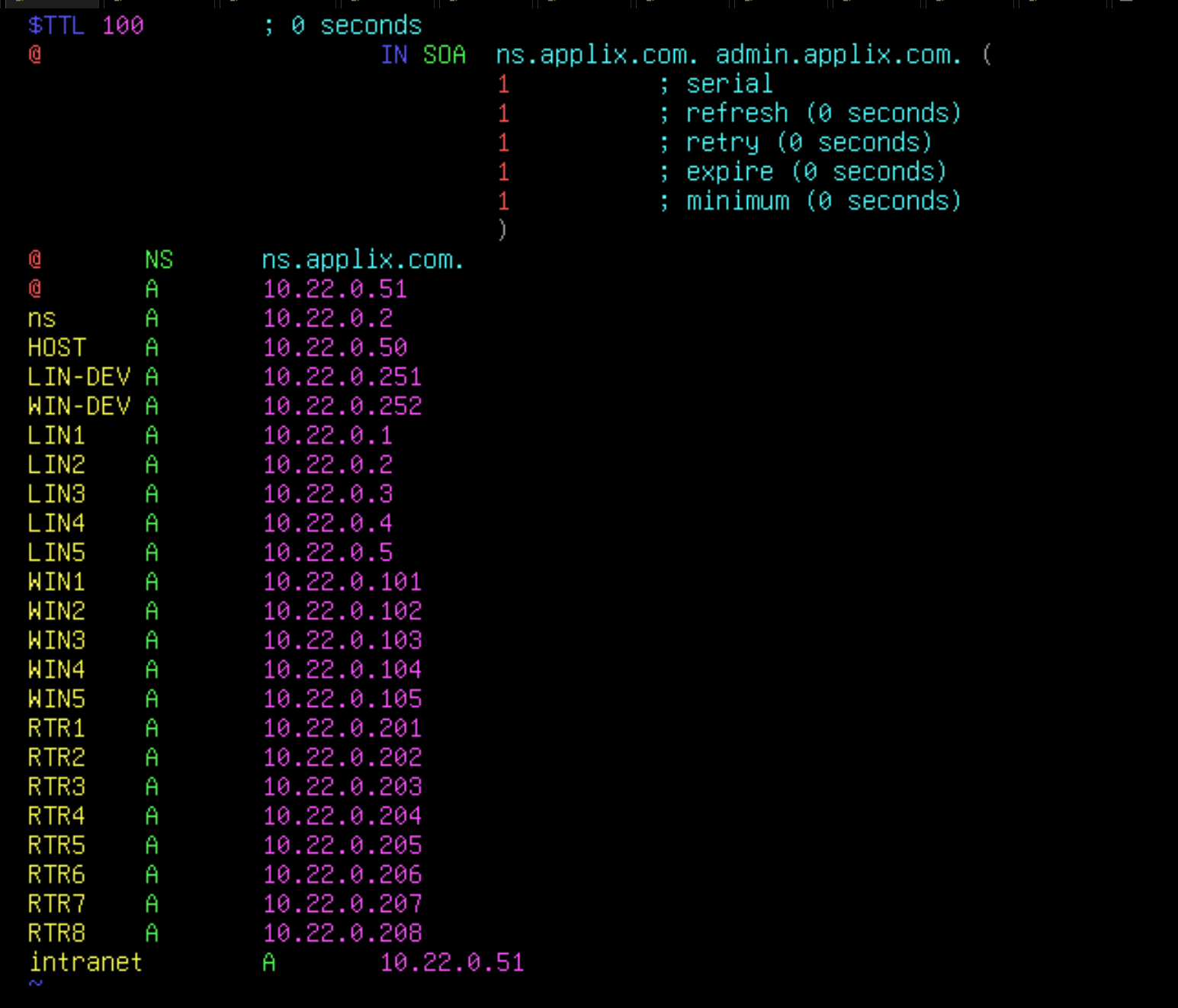

db.applix.com:

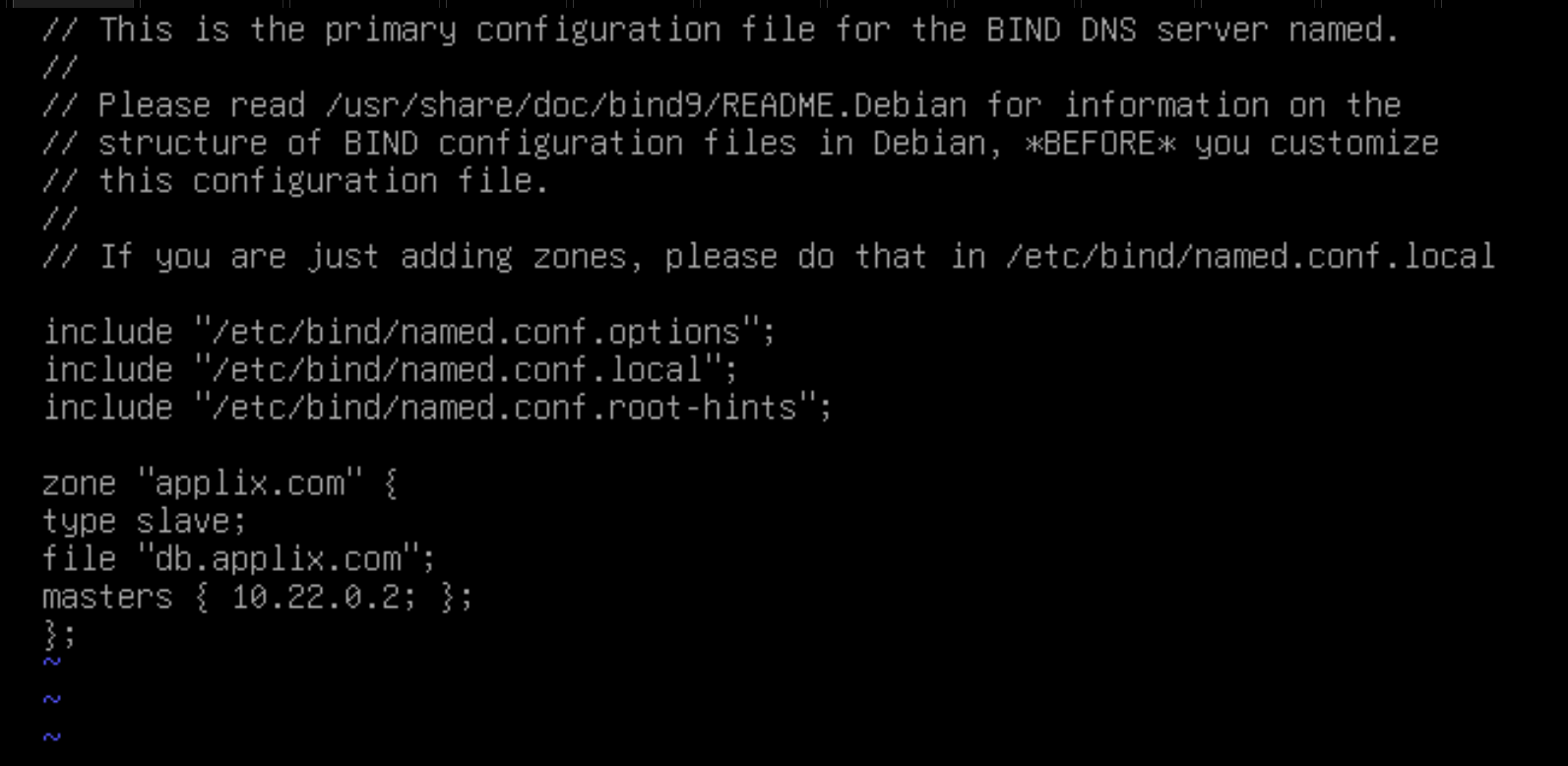

named.slave:

·剧本解释：

1、使用 groups变量按顺序列出dns组中的主机（顺序与hosts文件相同），使用下标来定义server和slave，下表为0（第一台主机）为dns server，下标为1和1以上为dns slave
2、然后使用 hostvars变量来读取主机上的变量，用于获取主DNS服务器的IP，用来修改 slave DNS的masters字段、在resolv.conf中定义DNS服务器地址

4）DNS Client：

4-dns-client.yml

---
- name: DNS Client
  hosts: dns
  gather_facts: false
  vars:
    server: "{{ groups['dns'][0] }}"
    slave: "{{ groups['dns'][1:] }}"
    server_ip: "{{ hostvars[server].ansible_host }}"
  tasks:

    - name: Set DNS Server
      shell: |
        echo domain applix.com > /etc/resolv.conf
        echo search applix.com >> /etc/resolv.conf
        echo nameserver {{ server_ip }} >> /etc/resolv.conf
      changed_when: false

    - name: Set DNS Server
      shell: |
        echo nameserver {{ hostvars[item].ansible_host }} >> /etc/resolv.conf
      loop: "{{ slave }}"
      changed_when: false

·剧本解释：

1、使用 hostvars变量来读取主机上的变量，用于获取主DNS服务器的IP，用来修改 slave DNS的masters字段、在resolv.conf中定义DNS服务器地址
2、因为slave变量是一个列表，定义了多台机器，因此需要使用loop进行读取遍历
3、最后一个task因为要使用loop读取变量来进行重复重定向，因此需要单独使用一个task，否则其他domain、search属性也会被重复重定向到文件中

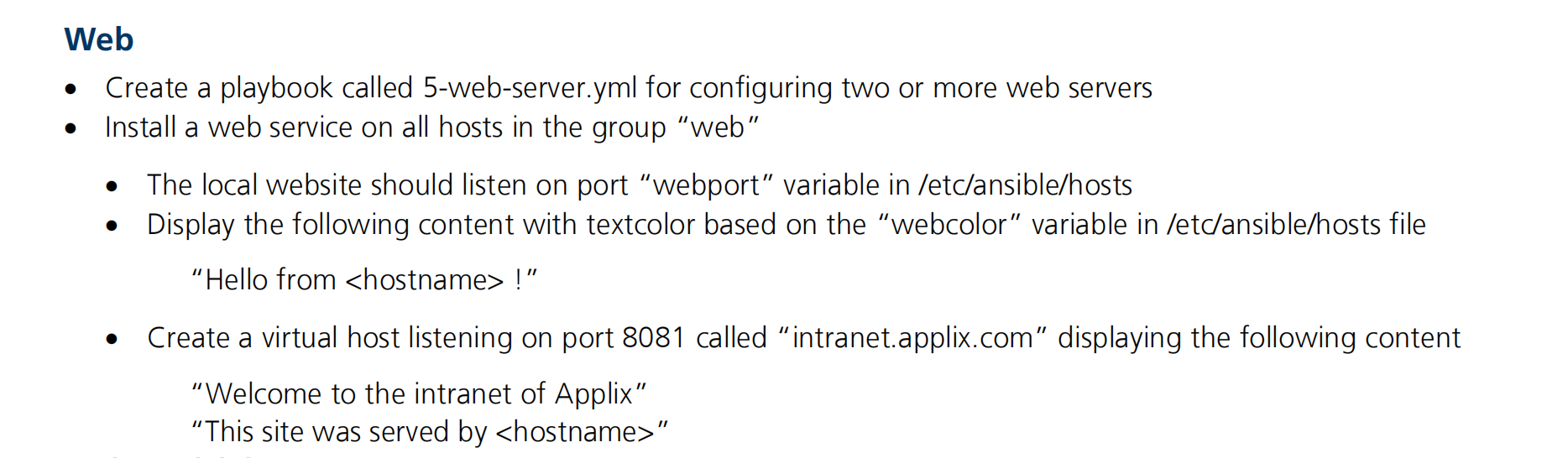

5）web：

---
- name: web server
  hosts: web
  gather_facts: false
  tasks:
    - name: Install web server
      apt:
        name:
          - apache2
          - curl
          - wget
        update_cache: false

    - name: Configure Web Config
      template:
        src: /data/000-default.conf
        dest: /etc/apache2/sites-available
      register: restart

    - name: set web port
      template:
        src: /data/ports.conf
        dest: /etc/apache2
      register: restart

    - name: Set Web index with color
      template:
        src: /data/index1
        dest: /var/www/html/index.html
      when: hostname is defined

    - name: Set Web index with color
      template:
        src: /data/index1.1
        dest: /var/www/html/index.html
      when: hostname is not defined

    - name: Set Web index
      template:
        src: /data/index2
        dest: /var/www/index.html
      when: hostname is defined

    - name: Set Web index
      template:
        src: /data/index2.1
        dest: /var/www/index.html
      when: hostname is not defined

    - name: restart
      systemd:
        name: apache2
        state: restarted
      when: restart.changed

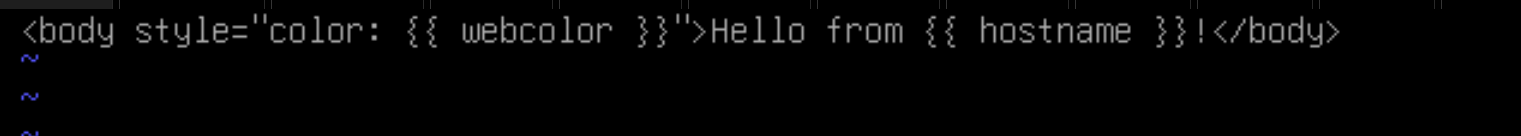

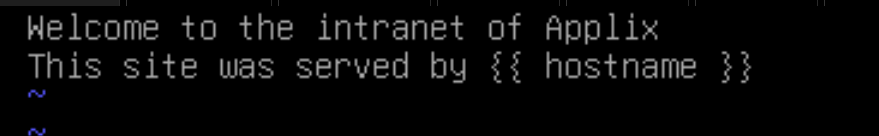

index1:

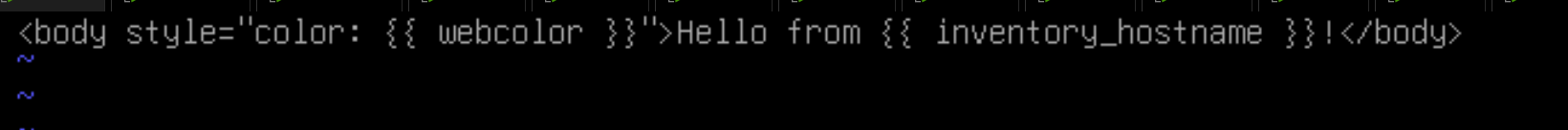

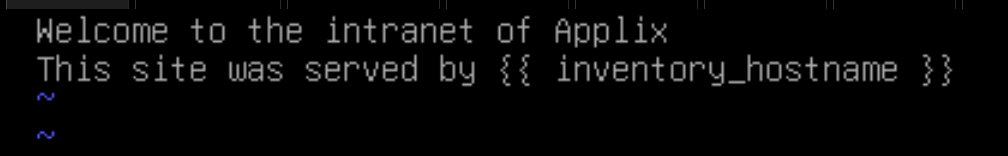

index1.1:

index2:

index2.1:

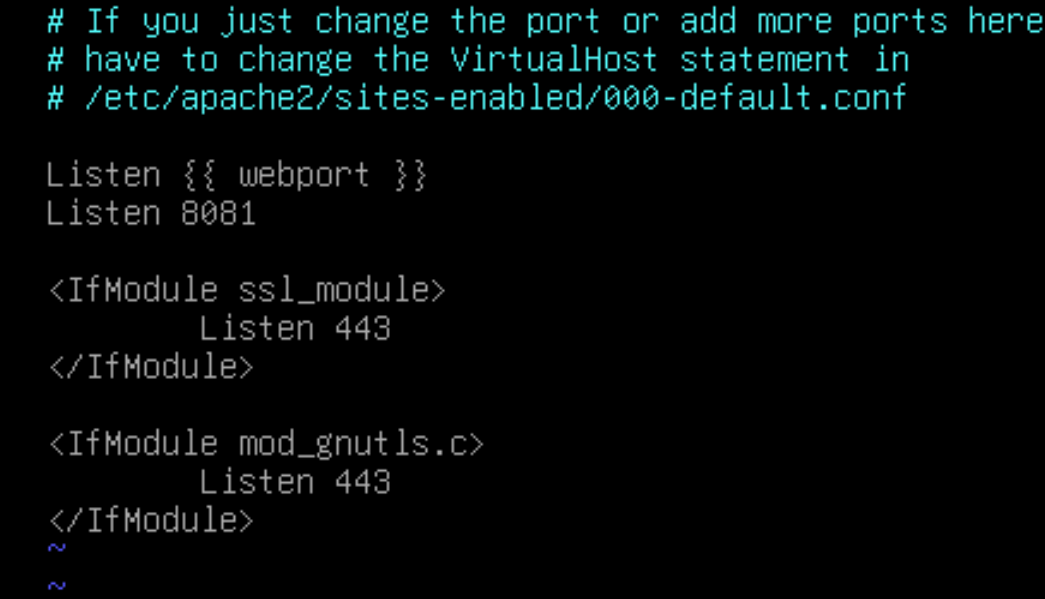

ports.conf

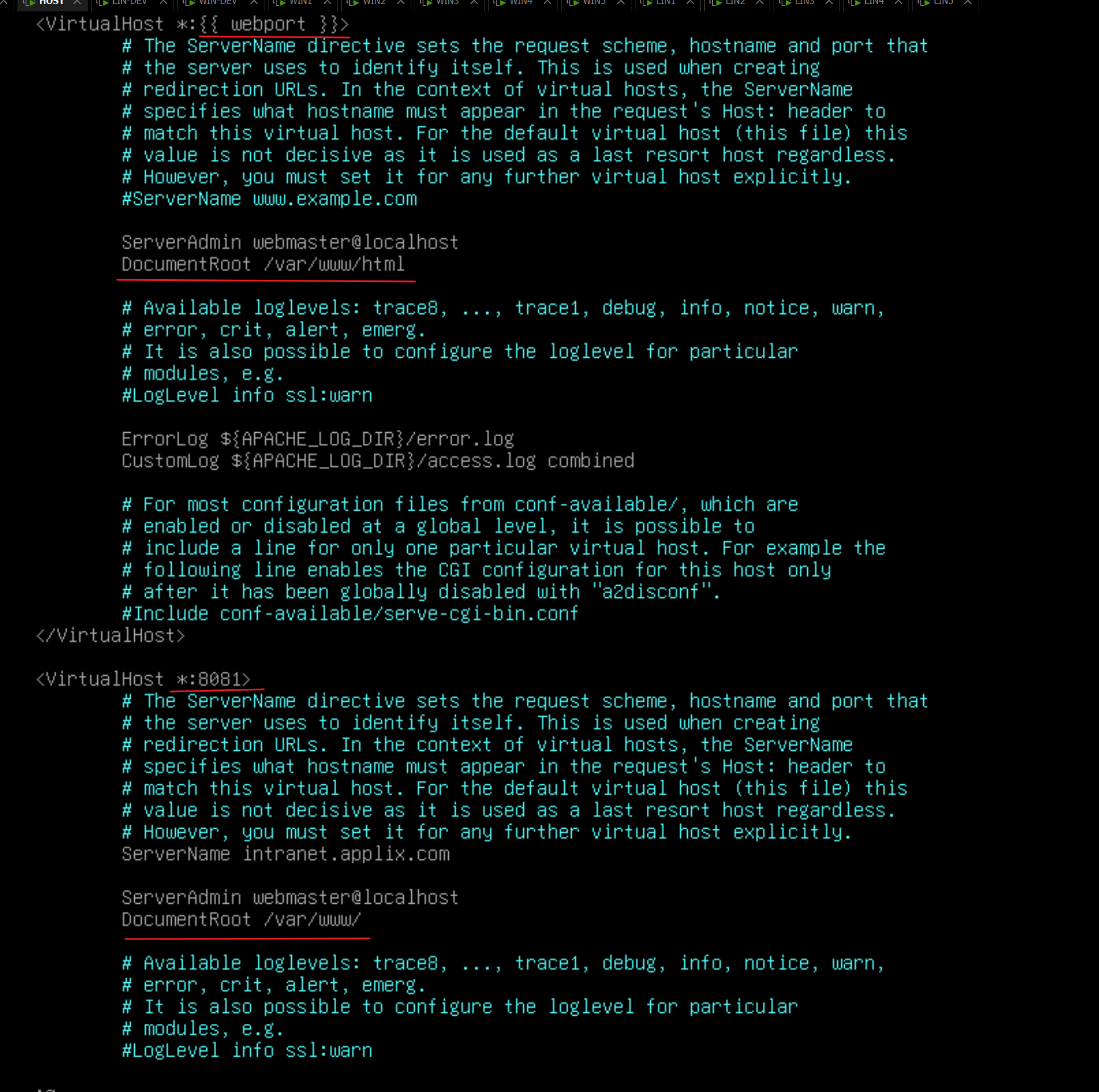

000-default.conf

·剧本解释：

1、因为这里主机名是根据剧本中的变量定义的，这里要假设变量不存在，假设变量不存在时，index.html中的，就使用inventory名称为index中的主机名
2、000-default.conf中，两个网站根目录分别是 /var/www、/var/www/html，这样就不需要额外再创建目录

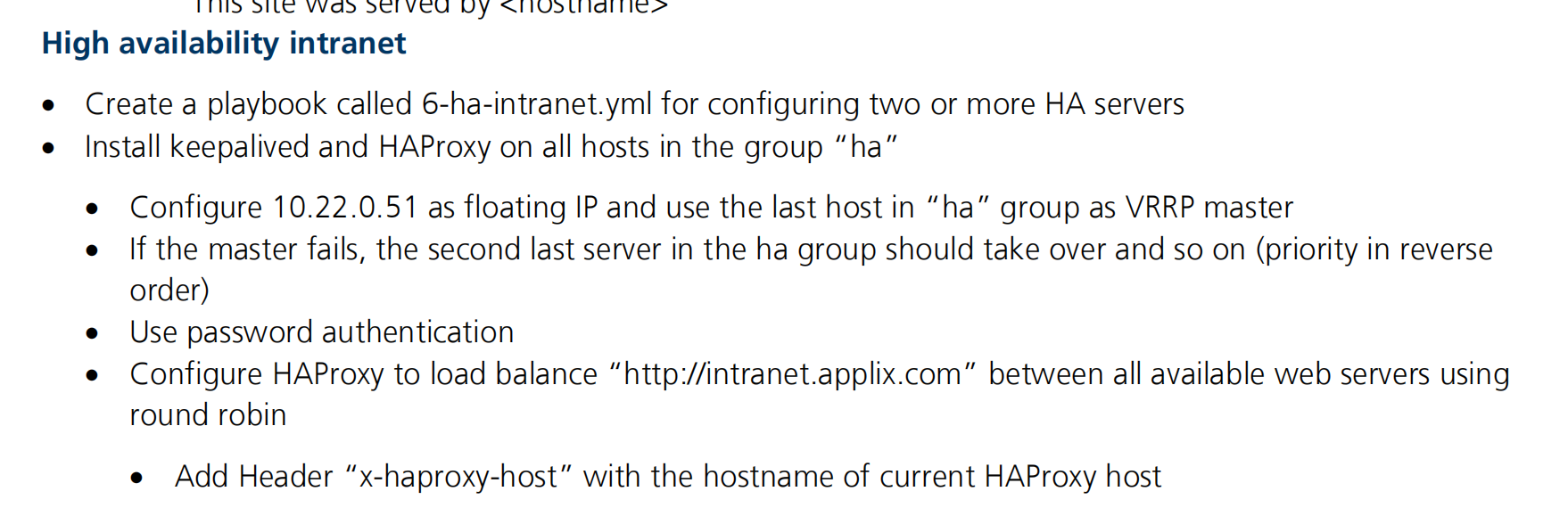

6）HA

---
- name: HA
  hosts: ha
  gather_facts: false
  vars:
    priv: "{{ 100 + groups['ha'].index(inventory_hostname) }}"
  tasks:
    - name: Install HA
      apt:
        name:
          - keepalived
          - haproxy
        update_cache: false
      register: apt
      changed_when: true

    - name: Configure HA Server
      template:
        src: /data/keepalived.conf
        dest: /etc/keepalived
      changed_when: apt.changed

    - name: Configure Haproxy Server
      template:
        src: /data/haproxy.cfg
        dest: /etc/haproxy
      changed_when: apt.changed
      when: hostname is defined

    - name: Configure Haproxy Server
      template:
        src: /data/haproxy.2
        dest: /etc/haproxy/haproxy.cfg
      changed_when: apt.changed
      when: hostname is not defined

    - name: Configure Haproxy Server
      lineinfile:
        path: /etc/haproxy/haproxy.cfg
        line: "server {{ item }} {{ hostvars[item].ansible_host }}:8081 check inter 1000"
      loop: "{{ groups['web'] }}"
      changed_when: apt.changed

    - name: restart1
      systemd:
        name: keepalived
        state: restarted
      changed_when: apt.changed

    - name: restart2
      systemd:
        name: haproxy
        state: restarted
      changed_when: apt.changed

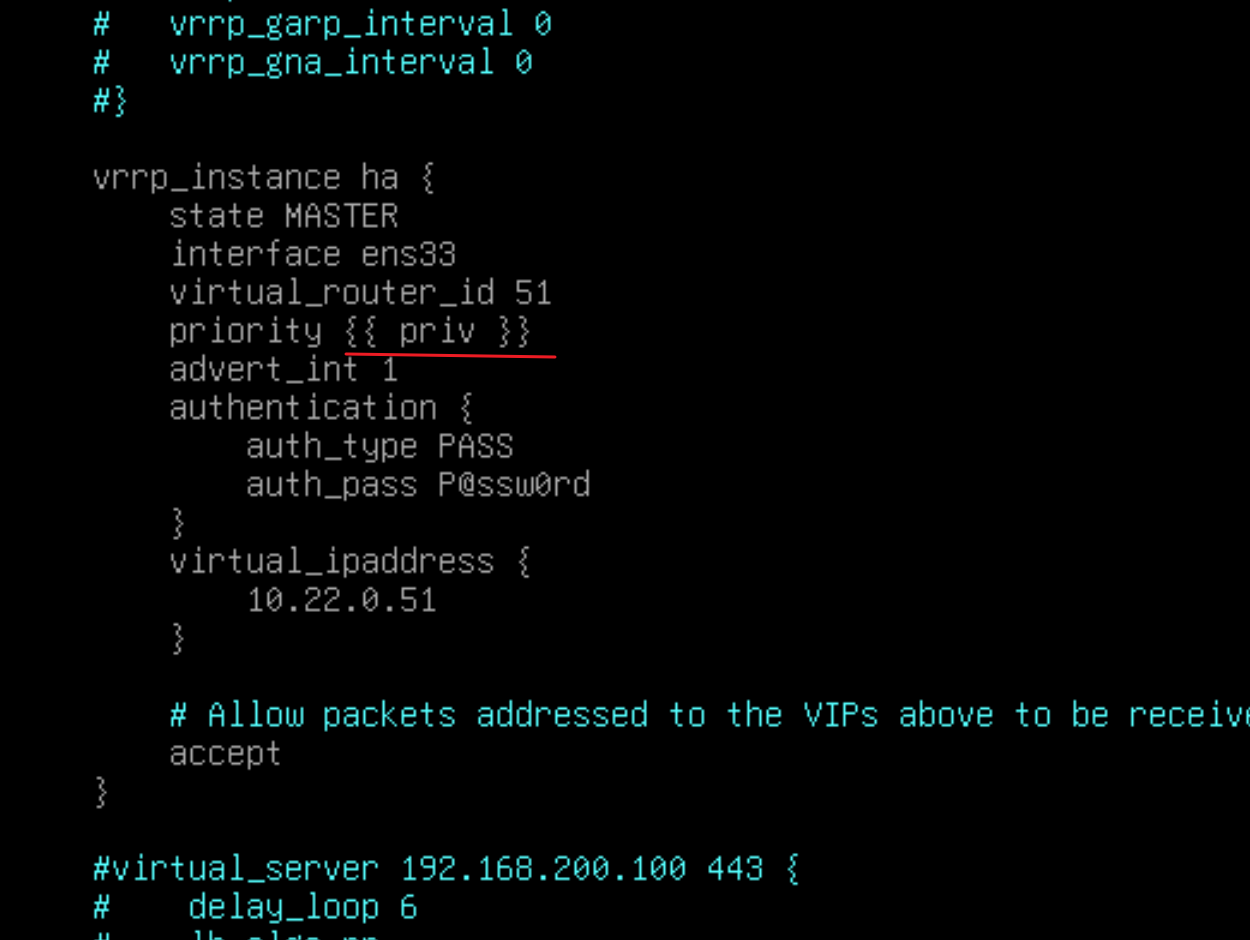

keepalived.conf:

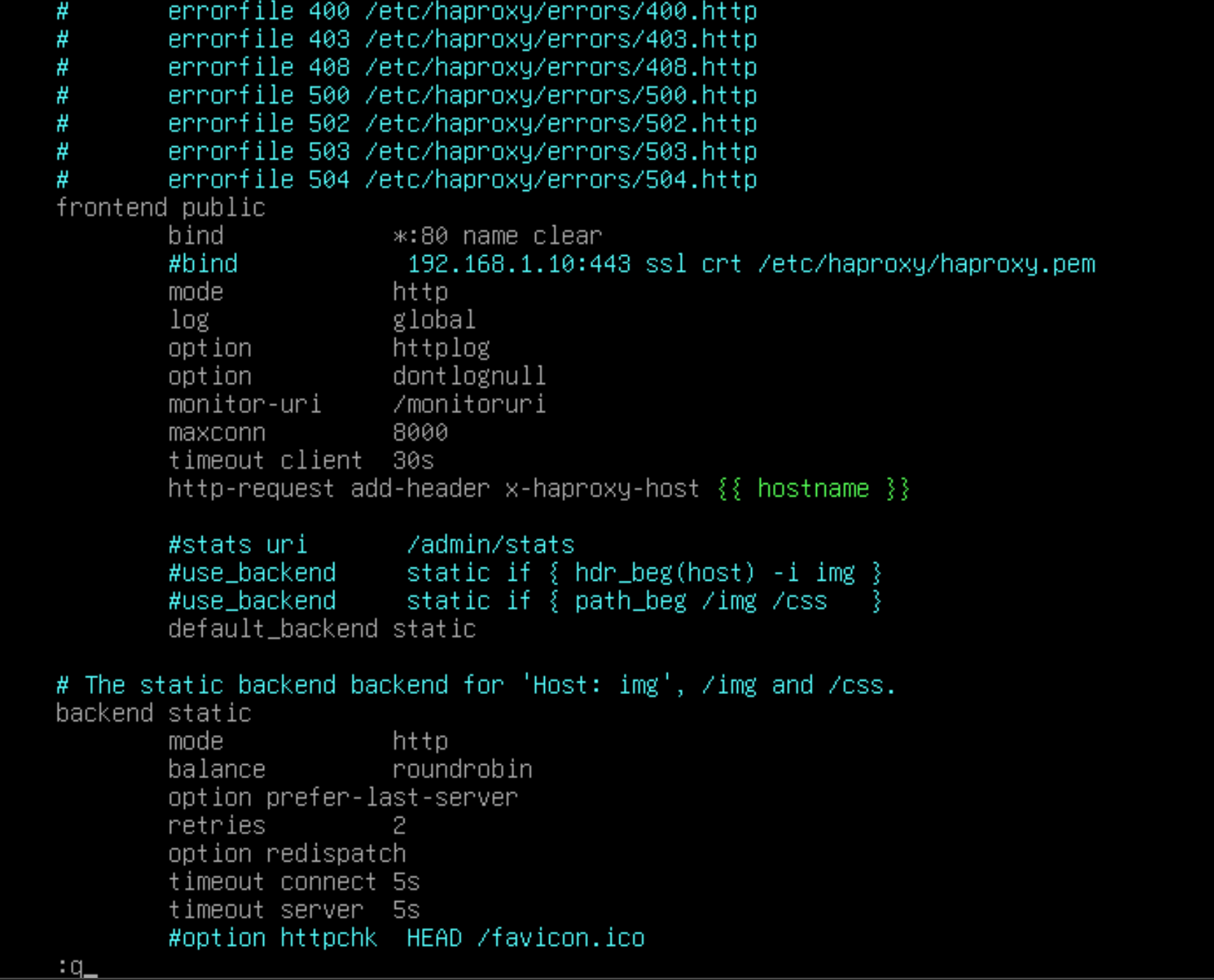

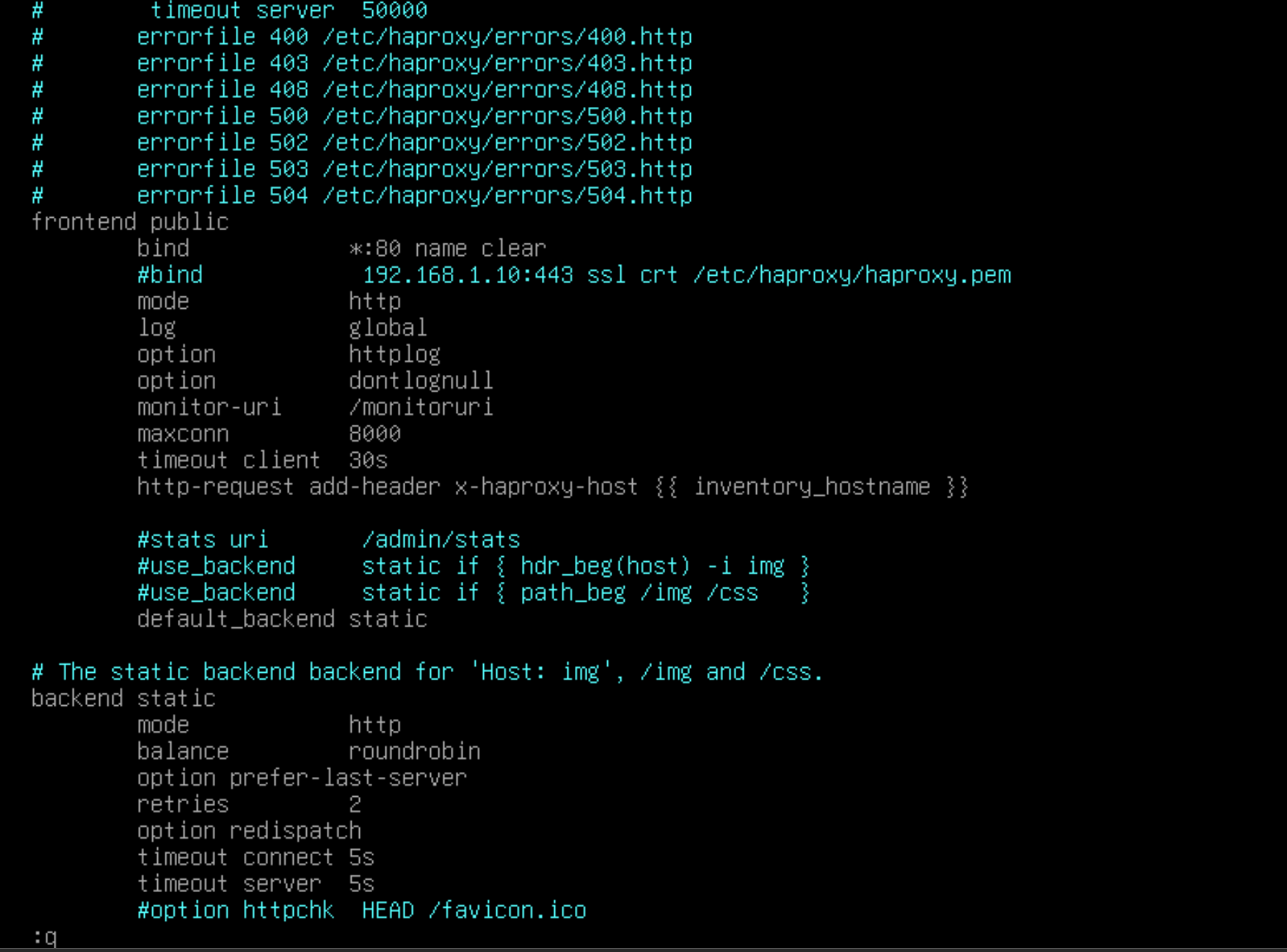

haproxy.cfg:

haproxy.2:

·剧本解释：

1、也是因为 hostname变量的问题，因此这里涉及到主机名的任务都需要有两个定义
2、因为keepalived要使用倒叙定义主服务器，因此就需要使用vars定义变量，用 groups+index 获取主机在组中的序号（组中第一台主机序号是0，第二台是1，以此类推），然后用100+这个序号，就能得出倒叙的主服务器的优先级，因为最后一台主机优先级必然最大，倒数第二台次之，以此类推
3、因为不知道评分时是否会更改web组中的主机，如果更改了，而我们haproxy写死后端服务器地址的话会出现问题，因此这里直接读取 web 组中的主机，以它为内容来将后端服务器地址写入到 haproxy.cfg文件中
4、因为剧本没有配置好幂等性，因此将他们全部与apt关联，使用apt来进行伪幂等
