题目：

一、交换部分

·基础配置：
no ip domain lo
lin con 0
logg s
exec-t 0 0
exit
clock timezone CST 8
enable secret P@ssworD
do wr


1、RSTP（802.1w）：
802.1w —— RSTP
802.1s —— MSTP
802.1d —— pvst

# CO_GW1：
spanning-tree mode rapid-pvst
spanning-tree vlan 10,99 priority 0
spanning-tree vlan 20 priority 4096

# CO_GW2：
spanning-tree mode rapid-pvst
spanning-tree vlan 20 priority 0
spanning-tree vlan 10,99 priority 4096

# CO_AC_SW1、CO_AC_SW2、DATA_SW:
spanning-tree mode rapid-pvst

## BO区域：
#BO_GW:
spanning-tree mode rapid-pvst
spanning-tree vlan 10,20 priority 0

# BO_AC_SW1、BO_AC_SW2:
spanning-tree mode rapid-pvst

2、VTP：
# CO_GW1：
vtp domain WSC2024.ORG
vtp version 2
vtp password P@ssworD
vtp mode server

# CO_GW2、CO_AC_SW1、CO_AC_SW2：
vtp domain WSC2024.ORG
vtp version 2
vtp password P@ssworD
vtp mode client


3、链路聚合：
# CO_GW1:
interface range GigabitEthernet1/0/3-4
 channel-group 3 mode on

interface range GigabitEthernet1/0/1-2
 channel-group 1 mode desirable

# CO_GW2:
interface range GigabitEthernet1/0/1-2
 channel-group 2 mode active

interface range GigabitEthernet1/0/3-4
 channel-group 3 mode on

# CO_AC_SW1:
interface range FastEthernet0/3-4
 channel-group 1 mode auto

# CO_AC_SW2:
interface range FastEthernet0/3-4
 channel-group 2 mode passive


4、最好再配置 native vlan 和 trunk 修剪
int ra g1/0/5-6
 sw tr al vl 10,20,99
 sw tr na vl 99


5、HSRP：
# CO_GW1:
interface Vlan10
 standby version 2
 standby 10 ip 192.168.10.254
 standby 10 priority 255
 standby 10 preempt

interface Vlan20
 standby version 2
 standby 20 ip 192.168.20.254
 standby 20 priority 200
 standby 20 preempt

interface Vlan99
 standby version 2
 standby 99 ip 192.168.99.254
 standby 99 priority 255
 standby 99 preempt


# CO_GW2:
 standby version 2
 standby 10 ip 192.168.10.254
 standby 10 priority 200
 standby 10 preempt

interface Vlan20
 standby version 2
 standby 20 ip 192.168.20.254
 standby 20 priority 255
 standby 20 preempt

interface Vlan99
 standby version 2
 standby 99 ip 192.168.99.254
 standby 99 priority 200
 standby 99 preempt


6、DHCP

CO_SRV1:

## 前提是有给客户端划分vlan，CO_CLT划分到vlan10，CO_SRV划分到vlan20
# CO_GW1、CO_GW2:
int vlan 10
 ip helper-address 192.168.20.100


7、portfast、bpduguard、端口安全：
# 所有交换机
int f0/1    //连接客户端的接口
spanning-tree portfast

# CO_AC_SW1:
int f0/1
spann bpduguard enable

int f0/2
 switchport port-security
 switchport port-security maximum 1
 switchport port-security mac-address sticky
 switchport port-security violation protect


二、路由部分

1、CO区域内部EIGRP：
## 需要配置被动接口
# CO_GW1:
router eigrp 2024
 no au
 passive-interface default
 no passive-interface GigabitEthernet1/0/6
 network 10.0.1.0 0.0.0.255
 network 192.168.10.0 0.0.0.255
 network 192.168.20.0 0.0.0.255
 network 192.168.99.0 0.0.0.255

# CO_GW2:
router eigrp 2024
 no au
 passive-interface default
 no passive-interface GigabitEthernet1/0/6
 network 10.0.2.0 0.0.0.255
 network 192.168.10.0 0.0.0.255
 network 192.168.20.0 0.0.0.255
 network 192.168.99.0 0.0.0.255

# CO_EDGE:
router eigrp 2024
 no au
 passive-interface default
 no passive-interface GigabitEthernet0/0/0
 no passive-interface GigabitEthernet0/0/1
 network 10.0.1.0 0.0.0.255
 network 10.0.2.0 0.0.0.255


2、BO区域内部RIPv2：
虽然没说，但是最好也配置一个被动接口
# BO_EDGE:
router rip
 version 2
 network 10.0.3.0
 no auto-summary

# BO_GW:
router rip
 version 2
 network 10.0.3.0
 network 172.16.10.0
 network 172.16.20.0
 no auto-summary


3、公网 OSPF：
最好是在接口也启用一个ospf，因为是自动化评分的
 ISP1:
router ospf 2024
 router-id 1.1.1.1
 network 102.14.1.0 0.0.0.3 area 0
 network 101.0.1.0 0.0.0.255 area 1
 network 1.1.1.1 0.0.0.0 area 0

# 将接口类型设置为点对点：
int g0/0/0
 ip ospf network point-to-point

 ISP2:
router ospf 2024
 router-id 2.2.2.2
 network 103.24.1.0 0.0.0.3 area 0
 network 102.0.1.0 0.0.0.255 area 2
 network 2.2.2.2 0.0.0.0 area 0

int g0/0/0
 ip ospf network point-to-point

ISP3:
router ospf 2024
 router-id 3.3.3.3
 network 104.34.1.0 0.0.0.3 area 0
 network 103.0.1.0 0.0.0.255 area 3
 network 3.3.3.3 0.0.0.0 area 0

int g0/0/0
 ip ospf 2024 area 3    //必须要在接口启用ospf，否则ASA将无法获取到路由条目
 ip ospf network point-to-point

ISP4：
router ospf 2024
 router-id 4.4.4.4
 network 104.34.1.0 0.0.0.3 area 0
 network 103.24.1.0 0.0.0.3 area 0
 network 102.14.1.0 0.0.0.3 area 0
 network 4.4.4.4 0.0.0.0 area 0


 CO_EDGE:
router ospf 2024
 router-id 5.5.5.5
 network 101.0.1.0 0.0.0.255 area 1
 network 5.5.5.5 0.0.0.0 area 1

BO_EDGE:
router ospf 2024
 router-id 6.6.6.6
 network 102.0.1.0 0.0.0.255 area 2
 network 6.6.6.6 0.0.0.0 area 2

DATAFW:
interface GigabitEthernet1/1
 nameif Outside
 security-level 0
 ip address 103.0.1.1 255.255.255.0

router ospf 2024
 router-id 7.7.7.7
 network 103.0.1.0 255.255.255.0 area 3

三、防火墙部分

1、基础配置：
DATAFW:
## 防火墙如果不用ACL放行流量的话是pin不通的（但是其它流量可以通过），但是本次题目防火墙需要应用其它ACL，无法应用该ACL，因此就不创建了

policy-map global_policy
 class inspection_default
  inspect icmp

interface GigabitEthernet1/1
 nameif Outside
 security-level 0
 ip address 103.0.1.1 255.255.255.0

interface GigabitEthernet1/2
 nameif Inside
 security-level 50
 ip address 172.16.1.254 255.255.255.0

2、配置 ACL：
# 允许外部访问防火墙的这些端口：
access-list DNS_WEB permit udp any host 103.0.1.11 eq 53
access-list DNS_WEB permit tcp any host 103.0.1.20 eq 80
access-group DNS_WEB in interface Outside


3、配置 DNAT：
# 将内网 172.16.1.10地址，映射到公网103.0.1.11：
object network DNS-SRV
 host 172.16.1.10
 nat (Inside,Outside) static 103.0.1.11

# 将内网 172.16.1.20地址，映射到公网103.0.1.20
object network WEB-SRV
 host 172.16.1.20
 nat (Inside,Outside) static 103.0.1.20
这样直接就能够访问了，不需要配置静态路由然后重分发到 OSPF


四、默认路由、NAT、ACL：

1、默认路由：

（1）CO区域：
# CO_GW1：
ip route 0.0.0.0 0.0.0.0 10.0.1.1

# CO_GW2:
ip route 0.0.0.0 0.0.0.0 10.0.2.1


（2）BO区域：
# BO_GW:
ip route 0.0.0.0 0.0.0.0 10.0.3.1


2、NAT：

（1）CO_EDGE:
int g0/0/2
 ip nat outside
int ra g0/0/0-1
 ip nat inside

ip access-list extended CotoNat
 permit ip 192.168.0.0 0.0.255.255 any

ip nat inside source list CotoNat interface g0/0/2 overload

（2）BO_EDGE:
int g0/0/1
 ip nat inside
int g0/0/0
 ip nat outside

ip access-list extended BotoNat
 permit ip 172.16.0.0 0.0.255.255 any

ip nat inside source list BotoNat interface GigabitEthernet0/0/0 overload


（3）DATAFW（DNAT）：
ASA防火墙不需要在接口上配置 nat inside 和 outside
DateFW：
 interface GigabitEthernet1/1
 nameif Outside
 security-level 0
 ip address 103.0.1.1 255.255.255.0

interface GigabitEthernet1/2
 nameif Inside
 security-level 50
 ip address 172.16.1.254 255.255.255.0

 ### 静态DNAT
object network DNS-SRV
 host 172.16.1.10
 nat (Inside,Outside) static 103.0.1.11
object network WEB-SRV
 host 172.16.1.20
 nat (Inside,Outside) static 103.0.1.20

 ### ACL允许流量通过
 access-list DNS_WEB extended permit ip any host 103.0.1.20
 access-list DNS_WEB extended permit ip any host 103.0.1.11
 access-group DNS_WEB in interface Outside


五、服务（dns、web、dhcp）：

1、dhcp：

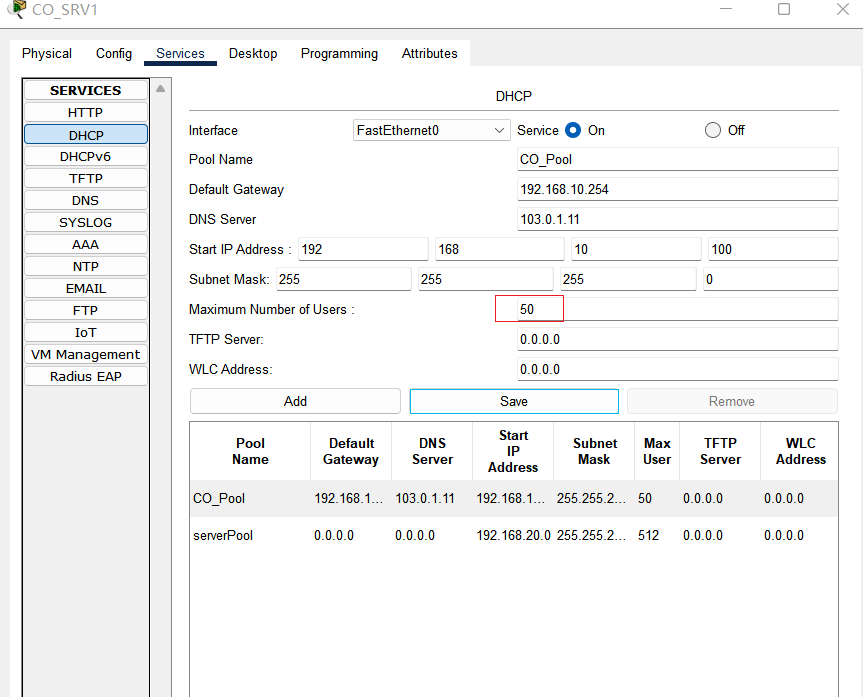

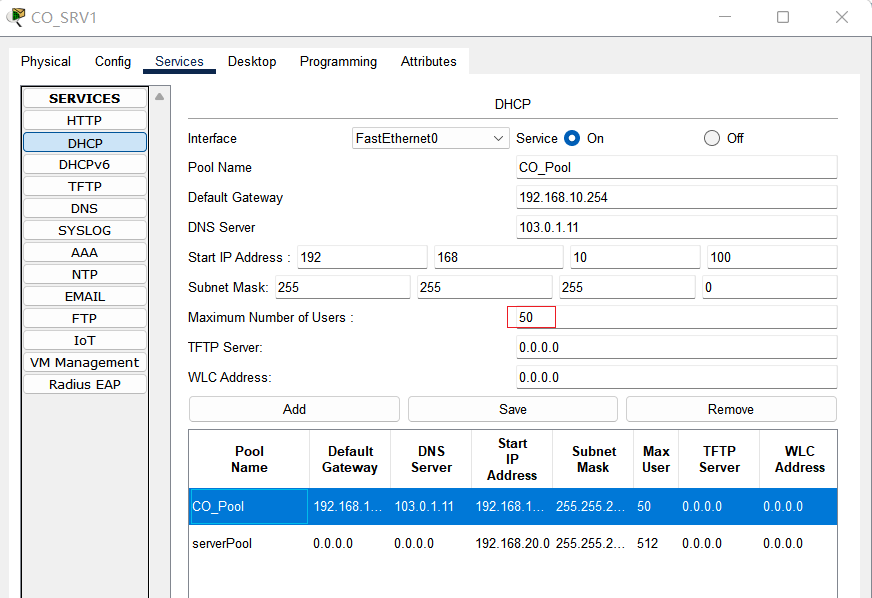

（1）CO_SRV1：

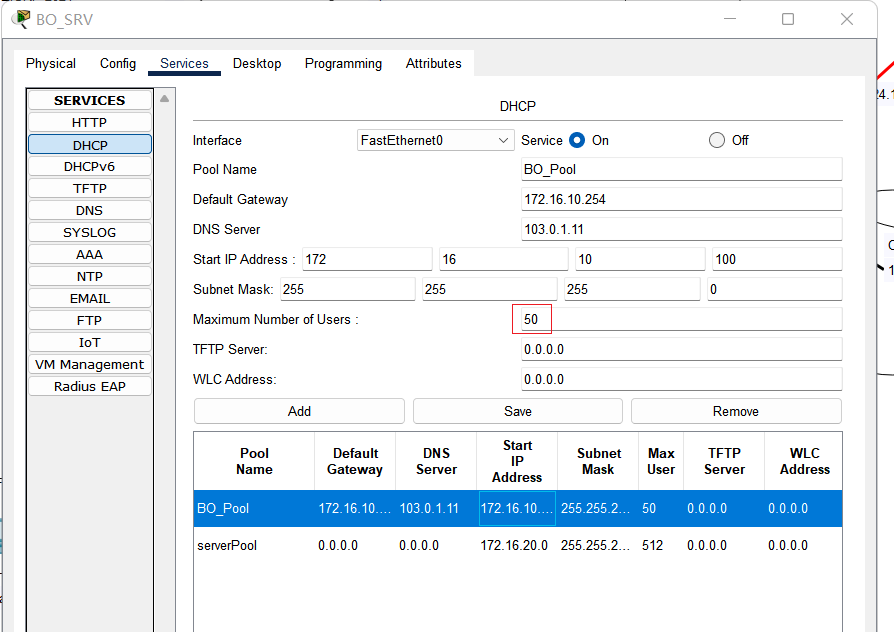

（2）BO_SRV:

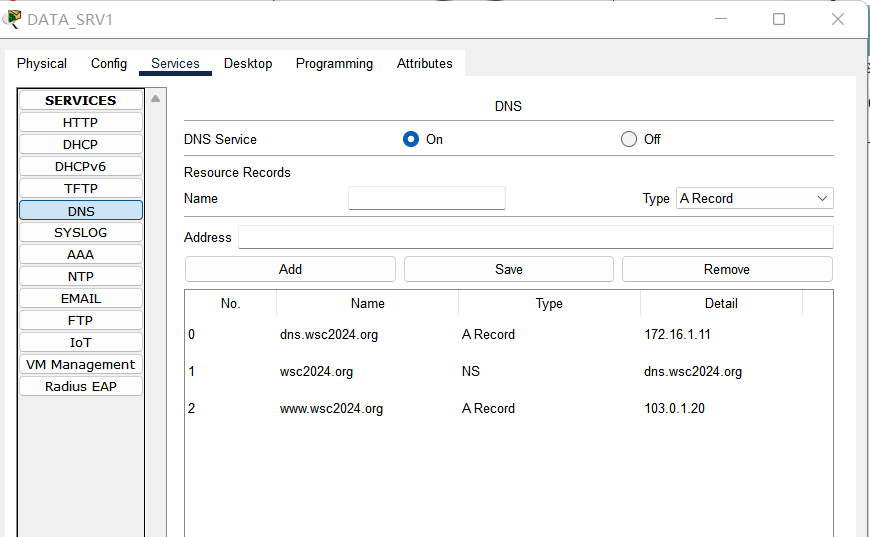

2、DATA_SRV1（DNS）：

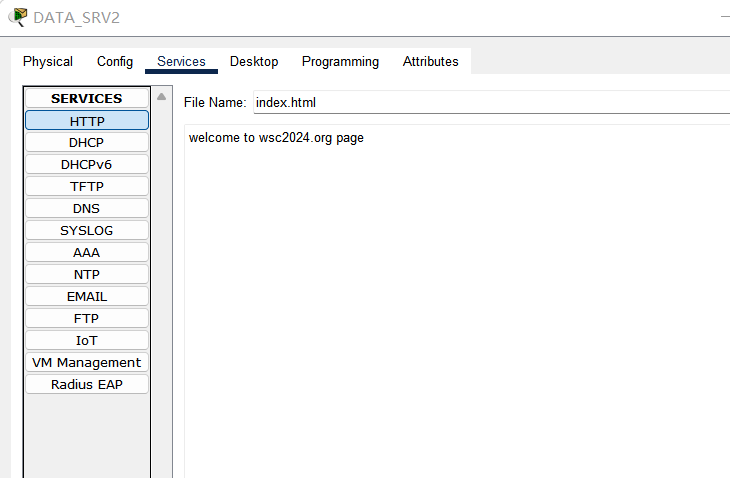

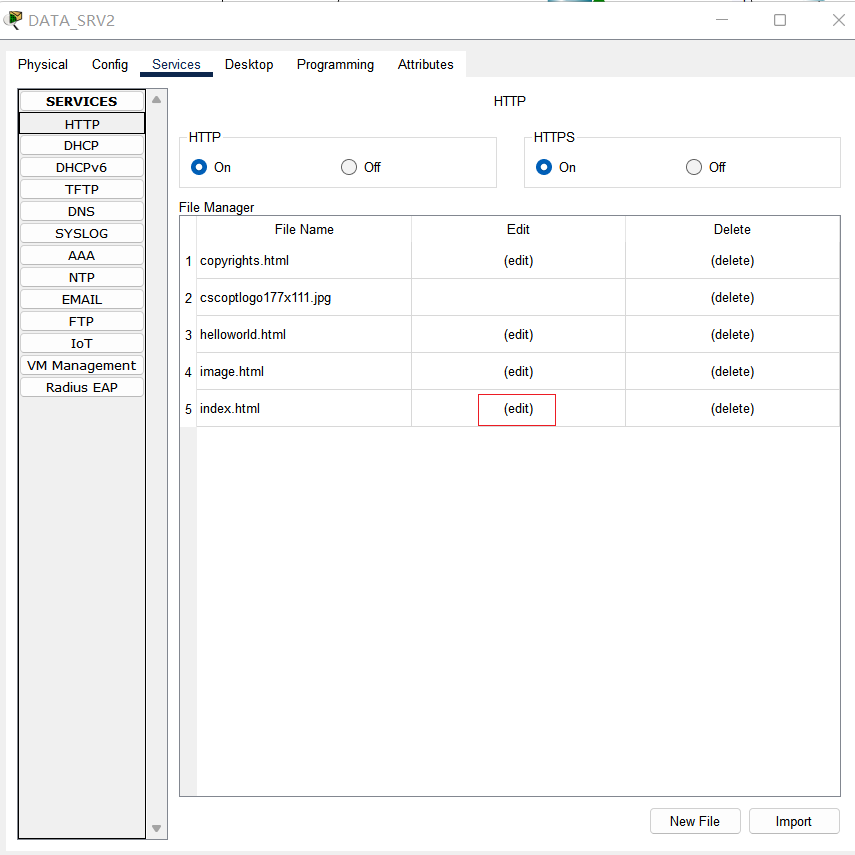

3、DATA_SRV2（web）：



六、VPN部分

1、CO_EDGE 和 BO_EDGE 部分：

（1）先建立GREtunnel，确保GRE能够ping通：
# CO_EDGE:
interface Tunnel 10
 ip address 10.0.0.1 255.255.255.0
 tunnel source G0/0/2
 tunnel destination 102.0.1.1

# BO_EDGE:
interface Tunnel 10
 ip address 10.0.0.2 255.255.255.0
 tunnel source G0/0/0
 tunnel destination 101.0.1.1

（2）配置 IPSec 加密：

·CO_EDGE:
crypto isakmp policy 10
 encr aes 256
 hash sha
 group 1
 authentication pre-share

crypto isakmp key P@ssworD address 0.0.0.0

crypto ipsec transform-set TS esp-3des esp-sha-hmac

ip access-list extended TUNVPN
 permit gre host 101.0.1.1 host 102.0.1.1    //匹配本端到对端公网地址的GRE流量

crypto map CMAP 1 ipsec-isakmp
 set peer 102.0.1.1
 set transform-set TS
 match address TUNVPN

interface GigabitEthernet0/0/2
 crypto map CMAP

·BO_EDGE
crypto isakmp policy 10
 encryption aes 256
 hash sha
 group 1
 authentication pre-share

crypto isakmp key P@ssworD address 0.0.0.0

crypto ipsec transform-set TS  esp-3des esp-sha-hmac

ip access-list extended TUNVPN
 permit gre host 102.0.1.1 host 101.0.1.1

crypto map CMAP 1 ipsec-isakmp
 set peer 101.0.1.1
 set transform-set TS
 match address TUNVPN

interface GigabitEthernet0/0/0
 crypto map CMAP

（3）配置 通向对端内网的静态路由：
# CO_EDGE:
ip route 172.16.0.0 255.255.0.0 10.0.0.2

# BO_EDGE:
ip route 192.168.0.0 255.255.0.0 10.0.0.1

·注意：需要手动ping通之后才会有 ipsec 状态：
# CO_EDGE:
ping 10.0.0.2

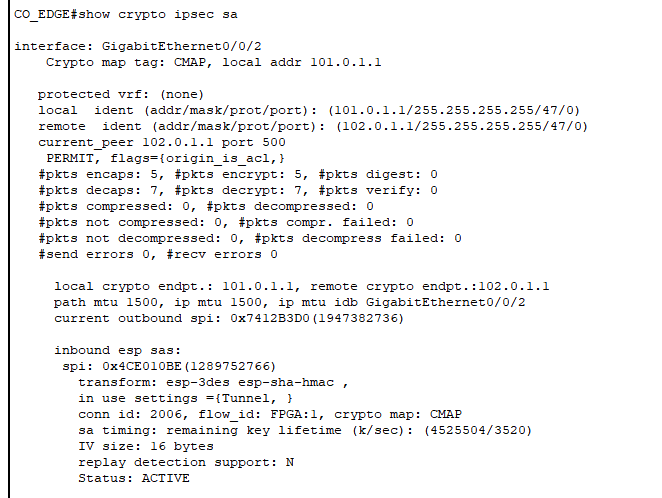

show crypto isakmp sa
show crypto ipsec sa



2、两台相同机器上的 第二个VPN：
因为两个tunnel都是相同网段，因此需要划分一下网段
# CO_EDGE:
interface Tunnel1
 ip address 10.0.0.5 255.255.255.252
 tunnel source GigabitEthernet0/0/2
 tunnel destination 102.0.1.1
ip route 172.16.0.0 255.255.0.0 10.0.0.6

# BO_EDGE:
interface Tunnel1
 ip address 10.0.0.6 255.255.255.252
 tunnel source GigabitEthernet0/0/0
 tunnel destination 101.0.1.1
ip route 192.168.0.0 255.255.0.0 10.0.0.5
